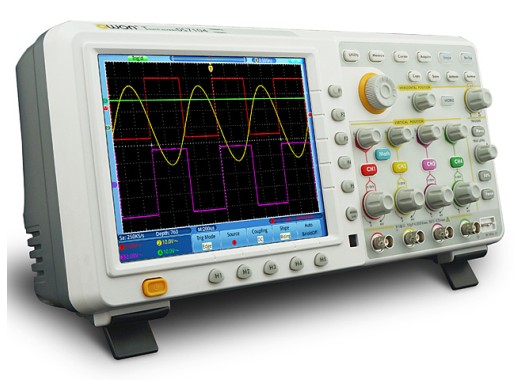

Owon TDS7104
Details
The TDS-series scopes by Owon are cheap 4-channel scopes with a large 8” touchscreen and a large memory capacity. Measurement results can be transferred to a USB storage device, or directly to a PC using the USB connectors available. The storage can be done both as binary data and as a screenshot. When less than three channels are used simultaneously the sampling rate for the first channels can be doubled.
Models
The models in the TDS series differ mainly in bandwidth and sample rate. The key differences are displayed in the table below
| Model | TDS7104 | TDS8204 |
| Analogue bandwidth | 100 MHz | 200 MHz |
| Sampling rate (4 channels active) | 500 MS/s | 1 GS/s |
| Sampling rate (1 or 2 channels active) | 1 GS/s | 2 GS/s |
| Price | € 554.63 | € 709.29 |
Specifications
| Memory | 7.6 MB per channel |
| Display | 8" TFT Touch screen, 800x600 pixels |
| Input impedance | 1 MΩ |
| Rise Time (at input) |
≤3.5 ns |
| Horizontal scale (input) |
2 ns/div - 100s/div |
| Vertical sensitivity (input) |
2 mV/div - 10 V/div |
| A/D converter | 8 bits resolutie |
| Maximal voltage | 400V (peak - peak) |
| DC gain accuracy | +-2% |
| Probe support | 1x, 10x, 100x, 1000x |
| Number of channels | 4 |
| Connectivity | USB 2.0 type A, USB 2.0 type B, LAN, VGA |
| Weight (without box) | 1.5 Kg |
| Dimensions | 380 x 180 x 115 mm |
For a detailed description of the specifications the spec sheet can be found here.
Accessories
All scopes in de TDS-series come supplied including:
- 4 probes: 1x / 10x
- USB cable (0,7 m)
- Power cord (1,7 m)
- Manual
- Software (Windows 98, XP, Vista, 7)
- 3 years of warranty
For more info the manual can be found here.
