Owon TAO3122A handheld oscilloscope

512.4 €512.40 Excl. VAT

This product is retired

Product number: ELE004665

Be the first to review this product

Lowest price guaranteed

Details

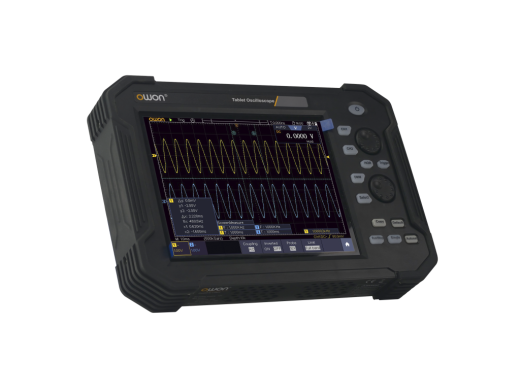

The Owon TAO3122A is a handheld oscilloscope with a bandwidth of 120 MHz to suit your application field. The handheld oscilloscope has comparable or even better specifications to many stand-alone oscilloscopes around its price point with its 40 Mpts memory and 1 GSa/s sampling rate. While most oscilloscopes have a vertical resolution of 8 bits, the Owon TAO3122A has a vertical resolution of 14 bits. Combining that with the decoding possibilities, this oscilloscope looks very attractive.

This handheld oscilloscope has 2 channels and comes with a multimeter included. This model also has a 8000 mAh battery that can last up to 5 hours while continuously in use. On top of this, this oscilloscope also has an 8-inch multi-point capacitive touch-screen to make navigating your measurements screen easier.

You have multiple connectivity options regarding exporting your measurements, this can either be done via LAN or USB. It is also possible to directly print your measurements via the USB port using the PictBridge protocol.

Lastly, the handheld oscilloscope can also be connected to a PC or laptop using the built-in Wi-Fi module, this allows the electronic device to realize the same screen display and control as on the oscilloscope. More information about this feature can be found in the user manual.

Model overview

The models of the TAO3000 series differ mainly in the bandwidth, vertical resolution, and input channels. The most important specifications are listed next to each other in the table below.

Model	TAO3072	TAO3072A	TAO3102	TAO3102A	TAO3122	TAO3122A
Channel	2	2	2	2	2	2
Bandwidth	70 MHz	70 MHz	100 MHz	100 MHz	120 MHz	120 MHz
Vertical resolution	8 bit	14 bit	8 bit	14 bit	8 bit	14 bit
Multimeter
Price	297.52 €297.52 Excl. VAT	504.13 €504.13 Excl. VAT	380.17 €380.17 Excl. VAT	545.46 €545.46 Excl. VAT	404.96 €404.96 Excl. VAT	512.4 €512.40 Excl. VAT

Model	TAO3074	TAO3074A	TAO3104	TAO3104A
Channel	4	4	4	4
Bandwidth	70 MHz	70 MHz	100 MHz	100 MHz
Vertical resolution	8 bit	14 bit	8 bit	14 bit
Multimeter
Price	429.75 €429.75 Excl. VAT	570.25 €570.25 Excl. VAT	446.28 €446.28 Excl. VAT	728 €728.00 Excl. VAT

Specifications

Sample rate	1 GSa/s
Memory depth	40 Mpts
Trigger types	Edge, Video, Pulse, Slope, Runt, Window, Timeout, Logic
Decoding possibilities	RS232/UART, I2C, SPI, CAN
Waveform capture rate	45 000 wfm/s
Vertical scale	1 mV/div - 10 V/div
Horizontal scale	1.0 ns/div - 1000 s/div
Measuring parameters (vertical)	Vmax, Vmin, Vpp, Vtop, Vbase, Mean, Vmean, Vrms
Measuring parameters (horizontal)	Period, Freq, +Wid, -Wid, Rise time, Fall time, +Dut, -Dut
Math operations	Addition, subtraction, multiplication, division, FFT, FFTrms, integration, differentation, square root, filtering, user defined function
Display	8" 800 x 600 LCD touch-screen
Connectivity	USB (Host/Device), LAN, Wifi
Dimensions	270 x 191 x 48 mm
Weight	1.7 kg

Multimeter

The 2 channel models come with a multimeter. The specifications for this multimeter are given below.

Range and accuracies

Specifications	Range	Accuracy
DC voltage (V)	20 mV, 200 mV 2 V, 20 V, 200 V 1000 V	±(0.5% + 10 digits) ±(0.3% + 5 digits) ±(0.5% + 5 digits)
AC voltage (V)	20 mV, 200 mV, 2 V, 20 V, 200 V 750 V	±(0.8% + 10 digits) ±(1% + 10 digits)
DC current (A)	10 A	±(2% + 10 digits)
AC current (A)	10 A	±(2.5% + 10 digits)
Resistance (Ω)	200 Ω 2 KΩ - 2 MΩ 20 MΩ 100 MΩ	±(0.8% + 10 digits) ±(0.5% + 3 digits) ±(0.8% + 5 digits) ±(5% + 10 digits)
Capacitance (F)	2 nF - 20 mF	±(4% + 10 digits)
