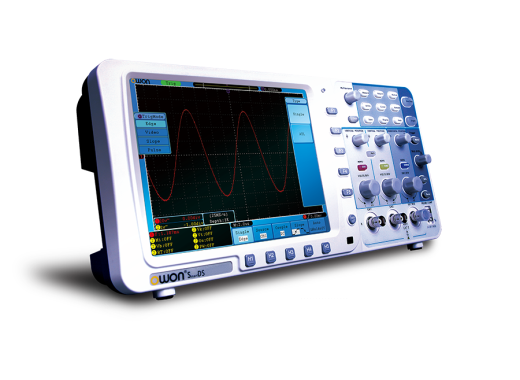

Owon SDS7072 oscilloscope

304.96 €304.96 Excl. VAT
This product is retired
  •
Product number: ELE000280

Be the first to review this product

Lowest price guaranteed

Details

The Owon SDS7072 is a 70MHz oscilloscope and is part of the SDS series, which is a high quality series of scopes for the demanding user. Large memory and a multitude of functions make these scopes a valuable addition to every lab or workspace. With the 8” colour display and the 8 bit AD converter these scopes display the measurement data clearly and in a detailed way. Measurement results can be exported directly to a PC using the USB-B connector, or to a memory stick using the USB-A connector on the side. Apart from that there is also a LAN connector on the device. Scopes with the "V" at the end of the name by default have a VGA connector aside from the previously mentioned.

With the optional battery pack the scopes can be used in the field, without the need of an external power supply.

Models

The models in the SDS series differ mainly in bandwidth and sampling rate. Below the biggest differences are displayed in a table

Model Bandwidth Sampling rate Price
SDS7072 70 MHz 1 GS/s 304.96 €304.96 Excl. VAT
SDS7102V 100 MHz 1 GS/s 304.96 €304.96 Excl. VAT
SDS7202V 200 MHz 1 GS/s 453.72 €453.72 Excl. VAT
SDS8202V 200 MHz 2 GS/s 619.01 €619.01 Excl. VAT
SDS8302V 300 MHz 2.5 GS/s 949.59 €949.59 Excl. VAT

Specifications

Memory 10 MB (per channel)
Display 8" TFT, 800x600 pixels, 65535 colours
Input impedance 1 MΩ
Rise Time
(at input)		 ≤5 ns
Horizontal scale
(input)		 2 ns/div - 100s/div
Vertical sensitivity
(input)		 2 mV/div - 5 V/div
A/D converter 8 bits resolution
Maximal spanning 400V (peak - peak)
Probe support 1x, 10x, 100x, 1000x
Number of channels 2
Connectivity USB 2.0 type A, USB 2.0 type B, LAN
Weight (without box) 1.8 Kg
Dimensions 340 x 155 x 70 mm

A detailed description of the specifications can be found in the spec sheet of Owon.

Accessoires

All scopes in the SDS series come supplied including:

  • 2 probes: 1x / 10x
  • USB cable (70 cm)
  • Power cord (170cm)
  • Manual
  • Software (Windows 98, XP, Vista, 7)
  • 3 years of warranty
Optional:

The manual for the Owon SDS series can be downloaded here.
