247.11 €247.11 Excl. VAT
Loading stock info
  •
Product number: ELE000501

Be the first to review this product

Details

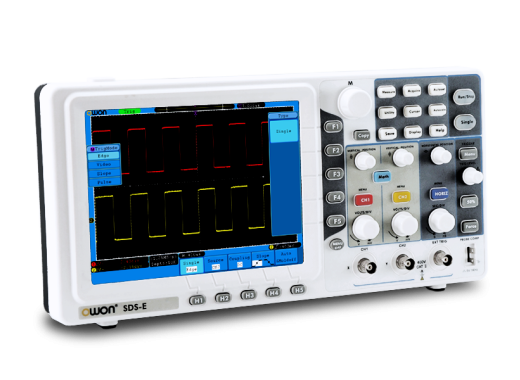

The SDS5032E oscilloscope is part of the SDS-E series, which is a competitively priced starter-series by Owon. These quick 2-channel scopes feature an 8” TFT colour-display with a resolution of 800 by 600 pixels. With the USB connection on the backside it is possible to export measurement data to the pc. With the USB on the front the data can easily be stored on an USB stick as both a screenshot and binary data. Apart from that there is a LAN connector on the device.

In comparison to the normal SDS series these SDS-E devices lack the possibility to connect a battery to the scope. The SDS-E series have a smaller memory size, 10/100KB per channel, compared to 10MB for the Owon SDS series.

Specifications

Bandwidth 30 MHz
Sampling rate 500 MS/s
Memory (per channel) 10 KB
Display 8" TFT, 800x600 pixels, 65535 colours
Input Impedance 1 MΩ
Rise Time
(at input)
≤11 ns
Horizontal scale
(input)
4 ns/div - 100 s/div
Vertical sensitivity
(input)
5 mV/div - 10V/div
Maximal voltage 400V (peak - peak)
DC gain accuracy ±3%
Probe support 1x, 10x, 100x, 1000x
Number of channels 2
Eleshop noise rating ★ ★ ★ ★ ★
Weight (without box) 1.5 Kg
Dimensions 348 x 170 x 78 mm

Accessories

All scopes in the SDS-E-series come including:

  • 2 probes: 1x / 10x
  • USB cable (70 cm)
  • Power cord (170cm)
  • Manual
  • Software (Windows 98, XP, Vista, 7)
  • 3 years of warranty

Optional carrying pouch

Sturdy Owon carrying pouch can be bought on this page

Pros and cons

  • Fanless
