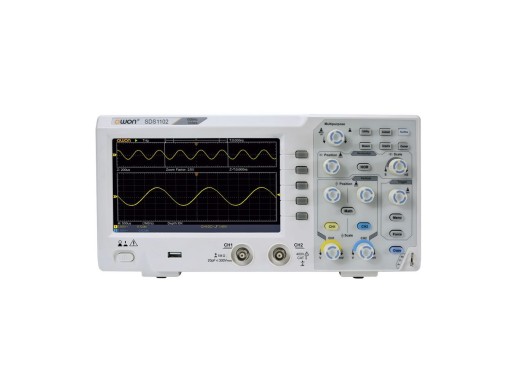

The Owon SDS1102 is a competitively priced oscilloscope with a sample rate of 1 GSa/s and a bandwidth of 100 MHz. With this oscilloscope, you have 2 channels at your disposal and it is possible to store 10 K points per measurement. There is a USB connection on the back for exporting measurement results to the PC, and a USB connection on the front for exporting to a USB memory stick.
This model has passive cooling: there is no fan, so it is silent!
The models of the SDS1000 series differ mainly in the bandwidth and channels. The most important specifications are listed next to each other in the table below.
Model | SDS1022 | SDS1102 | SDS1104 | SDS1202 |
---|---|---|---|---|
Channels | 2 | 2 | 4 | 2 |
Bandwidth | 20 MHz | 100 MHz | 100 MHz | 200 MHz |
Sample rate | 100 MSa/s | 1 GSa/s | 1 GSa/s | 1 GSa/s |
Price |
Memory depth | 10 Kpts |
Rise time | ≤3.5 ns |
Trigger types | Edge, Video |
Vertical resolution | 8 bit |
Vertical scale | 5 mV/div - 5 V/div |
Horizontal scale | 2.0 ns/div ~ 100 s/div |
Measuring parameters (vertical) | Vmax, Vmin, Vpp, Vtop, Vbase, Mean, Vmean, Vrms, |
Measuring parameters (horizontal) | Period, Freq, +Wid, -Wid, Rise time, Fall time, +Dut, -Dut, Delay |
Display | 7" 800x480 TFT LCD |
Connectivity | USB (Host/Device) |
Eleshop noise rating | ★ ★ ★ ★ ★ |
Dimensions | 301 x 152 x 70 mm |
Weight | 1.1 kg |
The Owon SDS1102 oscilloscope comes with:
Owon SDS1000 series manual |
(1.37 MB) | Download |
Owon SDS1000 datasheet |
(744.37 KB) | Download |
Owon SDS1000 user manual |
(1.37 MB) | Download |
