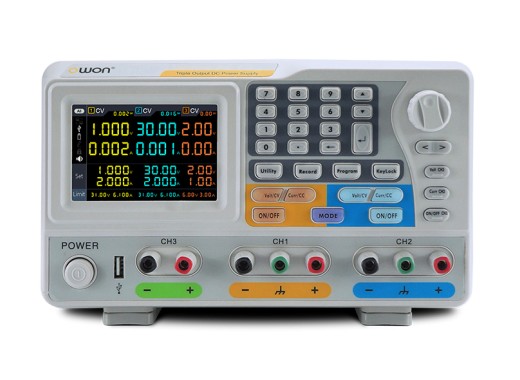

Owon ODP3122 power supply

The Owon ODP3122 power supply belongs to the Owon ODP series and has 2 channels and a maximum power of 378W.

The Owon ODP series power supplies are accurate, programmable power supplies with colour display and a high resolution. The power supplies have a built-in automatic cooling system to prevent overheating.

The power supplies have 2 or 3 channels. The channels are independently adjustable and the second or third channel provides a fixed output. This makes the power supplies suitable for supplying most circuits. The channels are mutually isolated, which results in low noise and high accuracy.

A nice feature of these programmable power supplies is that an arbitrary waveform can be programmed using 100 setpoints. It is also possible to store presets in 10 groups in order to quickly switch between different voltage and current settings. This makes it possible to use this power supply as a simple low-frequency function generator.

The 4" colour LCD (480 x 320 pixels) display shows the voltage, current and power.

Featuring a USB2.0 and an RS232 interface, the power supply can be programmed and controlled remotely using the supplied software.

Model overview

The models of the Owon ODP series differ mainly in the number of channels and their maximum output voltage, current and power. The most important specifications are listed next to each other in the table below.

Specifications

Accessories

The Owon ODP3122 power supply comes with the following accessories:

• Power cord
• USB cable
• Fuse

Downloads

Owon ODP3122/ODP6062 manual

(561.5 KB)

Download
