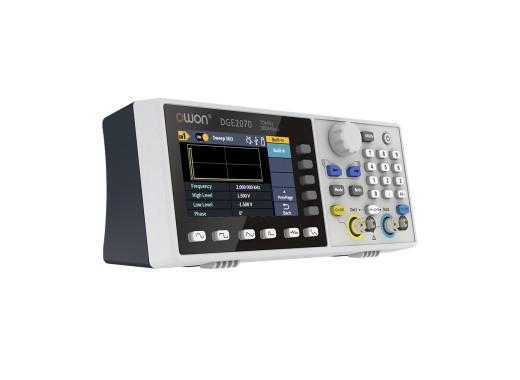

The DGE2070 from Owon is a 14 bit function generator with a bandwith of 70MHz. This function generator comes with 5 basic waveforms, 150 built-in arbitrary waveforms and has 16 digital arbitrary waveform storage functions.
Furthermore the DGE2070 has comprehensive modulation functions such as: AM, FM, PM, FSK, Sweep, Burst and more.
With the free PC software it is possible to draw your own waveforms and save them on the function generator. The function generator is easy to operate and has a very small size.
Model overview
We offer multiple function generators from Owon in the DGE2000 series, which differ in the bandwidth and sample rate:
| Model |
DGE2035
|
DGE2070
|
|---|
| Bandwidth |
35 MHz |
70 MHz |
| Sample rate |
125 MSa/s |
300 MSa/s |
| Price |
123.14
€123.14
Excl. VAT
|
156.2
€156.20
Excl. VAT
|
DGE2000 & DGE3000 series comparison
| Model |
Owon DGE2000 series |
Owon DGE3000 series |
|---|
| Bandwidth |
35 / 70 MHz |
30 / 60 MHz |
| Frequency resolution |
1 μHz of 7 digits |
6 digits |
| Waveform length |
8 kpts |
100 kpts |
| Frequency counter |
Not available |
100 mHz - 200 MHz |
Specifications
| Channels | 2 |
| Vertical resolution | 14 bits |
| Amplitude range | 2 mVpp - 10 Vpp |
| Modulation | AM, FM, PM, FSK, Sweep, Burst |
| Built-in functions | Sine, Square, Pulse, Ramp, Noise |
| Output impedance | 50 Ω |
| Interfaces | USB device |
| Display | 3.6" TFT LCD (480x272) |
| Dimensions | 200 x 68.5 x 74.5 mm |
| Weight | 0.5 kg |
Accessories
The Owon DGE2070 comes with:
- BNC to alligator clip
- BNC cable
- USB to DC cord
- USB cable
- Power adapter
Pros and cons
- Maximum function length of only 8k points
Downloads
