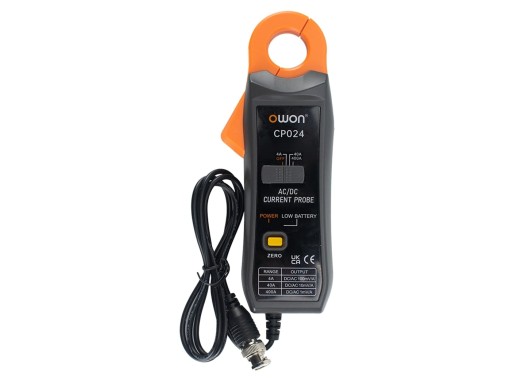

Owon CP024 current probe
Details
The Owon CP024 current probe has a maximum test range of 400A and a DC bandwidth of 200kHz. This probe has a full jaw size of 23mm. In addition, the CP024 has an 'Auto zero at power on' function, which means it is automatically calibrated when you turn the current probe on. Internal settings are adjusted for any offset or error when powered on. Finally, this current probe has a low battery indicator which indicates when the battery should be replaced.
Specifications
| Max. AC current | 400 A |
| Max. DC current | 400 A |
| Bandwidth | DC 200 kHz |
| Other functions | Low battery indicator, Auto Zero at power on |
| Power supply | 9V 6F22 battery |
| Connectivity | BNC |
| Jaw size | 23 mm |
| Dimensions | 180 x 44 x 30 mm |
| Weight | 200 g |
Accessories
The CP024 comes by default with the following:
- Soft bag
Downloads
| CP024 user manual |
 (601.11 KB) |
Download |
