61.94 €61.94 Excl. VAT
In Stock

Be the first to review this product

Details

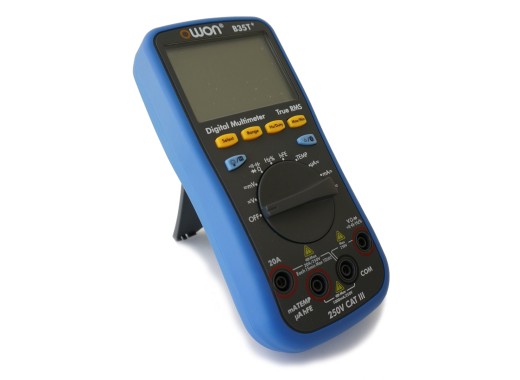

The Owon 35 series multimeters are of a high quality and have 3 key functionalities. The multimeters can be used as multimeter, data logger and thermometer. The B35T can be connected to an Android smartphone via Bluetooth and it is also equipped with the True-RMS function. The app supports multiple connections at the same time, enabling multiple measurements simultaneously with various multimeters.

The illuminated screen facilitates reading off the data. Data are displayed very accurately thanks to the 3 5/6 display. In addition, the analogue graph at the bottom of the screen shows the properties of the measured values. The multimeters are also equipped with a smart-off function which prolongs the battery life.

With the app mentioned above, the B35T can be connected to an Android device, for example a smartphone or tablet with Bluetooth. The app allows you to remotely read the data from the multimeter. In addition, the application offers extensive functionalities such as data tables and graphs. This makes it possible to display the measured values visually. The logged values can be shared with your smartphone via various applications such as mail. There is also a Text-To-Speech function that can say the measured values, so there is no need to constantly look at the screen. This voice also indicates any possible warnings, if an error is detected, so that dangerous situations can be prevented.

This video shows how fast the current measurement and data logging (with graph) works in combination with an application with a fading LED. In addition, Owon has a promo video in which various other possibilities of the meter are displayed.

Models

The difference between the B35 and the D35 is the fact that only the B35 has a Bluetooth module. So you cannot connect the D35 with your smartphone. The T models are also equipped with True-RMS and the + model offers data logging without a Bluetooth connection.

Model D35 B35 D35T B35T B35T+
Bluetooth
no
Yes
no
Yes
Yes
True-RMS
no
no
Yes
Yes
Yes
Data logging
no
Yes
no
Yes
Yes
(also available without
Bluetooth)
Price 41.28 €41.28 Excl. VAT 57.81 €57.81 Excl. VAT 45.41 €45.41 Excl. VAT 57.81 €57.81 Excl. VAT 61.94 €61.94 Excl. VAT

Specifications

Precision voltage DC: ±(0.5%+2dig) AC: ±(0.8%+2dig)
Precision current DC: ±(0.8%+2dig) AC: ±(1%+3dig)
Precision resistance ±(0.8%+2dig)
Precision capacitance ±(2.5%+3dig)
Auto scaling
Yes
Input protection
Yes
Safety certification 250 V, CAT III
Power supply 2 x AA batteries
Display size 69 x 52 mm
Dimensions 85 x 185 x 30 mm
Weight 320 g

Accessories

The Owon 35 series multimeters come with:

  • Test probes
  • Soft case
  • Multifunctional "test socket”
  • K-type thermocouple
  • Alligator clips
  • User manual (in English)
