Owon AG4081
Details

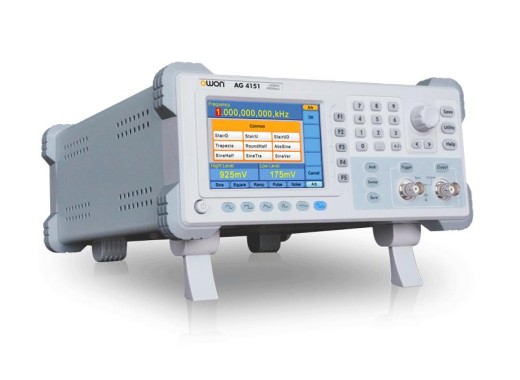

The AG4000 series by Owon is their flagship function generator. With the advanced DDS technology up to 150 MHz, 400Ms/s and 32 bit frequency resolution. The vertical resolution is a high 14 bits. Arbitrary waveforms can be generated with up to 1 Million points, and there are 256 storage slots for these signals.
The device can generate, out of the box, the following signals: Sinus, Block, Sawtooth, Pulse, Noise, Sync, or exponential (rise/decay) or a 32 channel digital wave. It can give a DC output, or modulate with AM, FM, PM, FSK and PWM. The function generator features a 3.9” 480x320 colour TFT screen to easily see what waveform is set.
Models
The models in de AG4000 series differ mainly in maximal output frequency. Below a table displays the key differences.
| Model | AG4081 | AG4101 | AG4121 | AG4151 |
|---|---|---|---|---|
| Maximal output frequency | 80 MHz | 100 MHz | 120 MHz | 150 MHz |
| Sample rate | 400 MS/s | 400 MS/s | 400 MS/s | 400 MS/s |
Specifications
| Vertical resolution | 14 bits, 1mV pp |
| Display | 3,9" LCD, 480x320 pixels |
| Built-in functions | o.a. Sine, Square, Ramp, Pulse, Noise, Arbitrary, DC Check the data sheet for more info. |
| Output impedance | 50 Ω |
| Frequency range | 1 μHz -80 MHz/120MHz/150MHz |
| Amplitude | 10 mVpp - 10 Vpp (50 Ω) 10 mVpp - 20 Vpp (At high impedance) |
| Channels | 1 |
| Connectivity | USB 2.0 type A, USB 2.0 type B, RS232 |
| Weight (without box) | 3.0 Kg |
| Dimensions | 235 x 110 x 295 mm (BxHxL) |
Check the data sheet for more info on the specifications and functionality.
Accessories
Function generators in the Owon AG4000 series come bundled with:
- Quick start guide
- USB cable
- Power cord
- CD with Software (Windows XP, Vista, 7)
For more information the user manual can be downloaded here.
