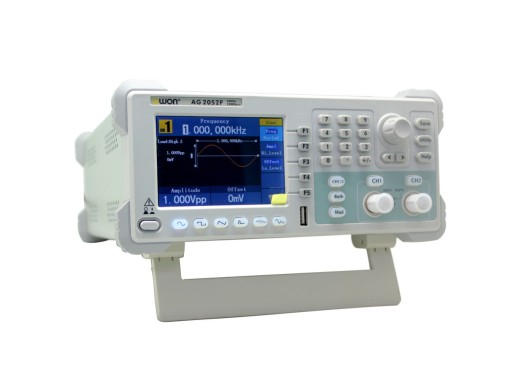

Owon AG2052F function generator

The Owon AG2052F function generator belongs to the Owon AG2000 series and has a maximum output frequency of 50 MHz.

The Owon AG2000 series function generators are advanced 2-channel digital function generators with high precision at an attractive price. With a sample rate of 250 MS/s and a bandwidth of 50-60MHz, these devices are widely applicable. The 14-bit vertical resolution and frequency resolution of 1 µHz ensures an accurate waveform.

The function generator features a 3.9" 480x320 TFT colour screen. Another feature is the included frequency counter which can measure up to 200 MHz. A total of 45 pre-programmed functions are present, including the most common waveforms such as sine, square, pulse, ramp and noise. The AG1000 can be connected to the PC via USB or RS232. With the supplied software it is possible to write your own functions up to 1 million points, which can be stored in one of the 26 memory slots on the function generator.

These function generators are also equipped with AM, FM, PM and FSK modulation functions.

Model overview

The models in the AG2000 series differ mainly in bandwidth. The most important specifications are shown in the table below.

Specificaties

Accessories

The Owon AG2052F function generator comes with the following accessories:

• Quick start manual
• USB cable
• Power cord

The manual can be found here.

Downloads

AG series datasheet

(1.61 MB)

Download
