Owon AG1022F-PAM function generator
Details

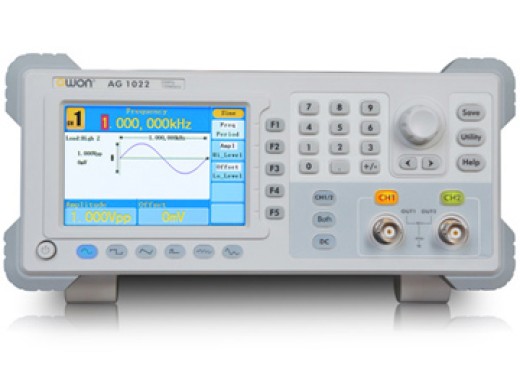

The Owon AG1022F-PAM function generator belongs to the Owon AG1000 series and has a maximum output frequency of 25 MHz. This function generator includes a power amplifier module.
The Owon 2-channel AG1000 series has an excellent price/performance ratio. With the advanced DDS technology up to 25 MHz and a 14 bits vertical resolution, these devices can be used to generate signals to high precision. The frequency resolution is 1 µHz which leads to high accuracy. The 2 channels of this function generator can be operated independently of each other.
The function generator features a 3.9" 480x320 TFT colour screen. Another feature is the included frequency counter which can measure up to 200 MHz. A total of 45 pre-programmed functions are present, including the most common waveforms such as sine, square, pulse, ramp and noise. The AG1000 can be connected to the PC via USB or RS232. With the supplied software it is possible to write your own functions, which can be stored in one of the 26 memory slots on the function generator.
Please note: the input of the power amplifier module can only handle a maximum of 2.2Vpp.
Specifications
| Vertical resolution | 14 bits |
| Display | 3,9" TFT, 480x320 pixels |
| Built-in functions | Sine, Square, Ramp, Pulse, Noise, Arbitrary, DC, etc. See the datasheet for other available functions. |
| Output impedance | 50 Ω |
| Bandwidth | 1 μHz - 10 MHz/25MHz |
| Amplitude range | 1m Vpp - 10 Vpp (50Ω), 1m Vpp - 20 Vpp (high impedance) |
| Duty cycle range | 20...80% (up to 1 MHz, after that 50%) |
| Channels | 2 |
| Connectivity | USB 2.0 type A, USB type B, RS232 |
| Weight (without box) | 3.0 Kg |
| Dimensions | 235 × 110 × 295 mm |
Accessories
The Owon AG1022F-PAM comes with the following accessories:
- Quick start guide
- USB cable
- Power cord
The manual can be found here.
