Product number: ELE001435

Be the first to review this product

Details

Included: power amplifier module

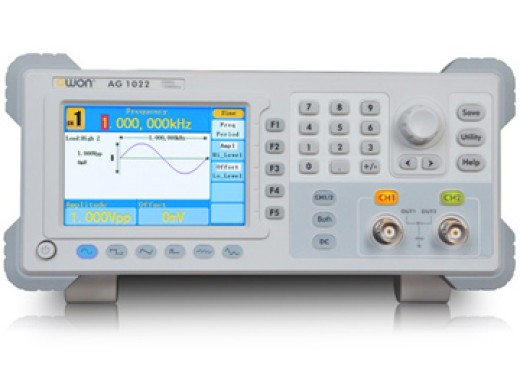

The 2 channel AG1000 function generators by Owon excel in being extremely cost efficient. With the advanced DDS technology up to 25 MHz with 125 MS/s and a 14 bits vertical resolution these devices can be used to generate signals to a high precision. The frequency resolution is 1 µHz which leads to a high accuracy. The 2 channels of this generator can be controlled independently of each other.

The function generator features a clear 3.9” 480x320 TFT colour screen. Another feature is the included frequency counter which can measure up to 200 MHz. By default the function generator can generate 45 preprogrammed common waveforms. Amongst there are for example Sine, Square, Pulse, Ramp, and Noise. Apart from that the AG1000 series generators can be connected to a PC using either USB or RS232. With the software supplied the user can write functions of their own, which can be saved in any of the 26 memory slots.


Models

The models in the AG1000 series differ mainly in bandwidth. Apart from that the models ending in F feature modulation functions, like AM, FM, PM and FSK. The biggest differences are displayed in the table below.

ModelAG1012AG1012FAG1022AG1022F
Maximal output frequency 10 MHz 10 MHz 25 MHz 25 MHz
Maximal sample-rate 125 MS/s 125 MS/s 125 MS/s 125 MS/s
Modulation
 No
 Yes
 No
 Yes

Specifications

Vertical resolution 14 bits
Maximal function length 8kpts
Display 3,9" TFT, 480x320 pixels
Built in functions o.a. Sine, Square, Ramp, Pulse, Noise, Arbitrary, DC
Check the data sheet for all functionality
Output impedance 50 Ω
Frequency range 1 μHz - 10 MHz/25MHz
Amplitude 1m Vpp - 10 Vpp (50Ω),
1m Vpp - 20 Vpp (high impedance)
Channels 2
Connectivity USB 2.0 type A, USB type B, RS232
Weight (without box) 3.0 Kg
Dimensions 235 × 110 × 295 mm

For more information about the AG1000 series the specification sheet can be downloaded.

Accessories

Function generators in the AG1000 series come bundled with:

  • Quick start guide
  • USB cable
  • Power cord
  • CD with Software (Windows XP, Vista, 7)

The manual for the models AG1012F and AG1022F can be found here.
