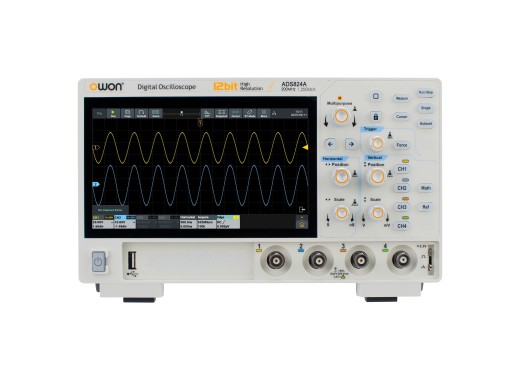

The Owon ADS824A is an affordable 12-bit oscilloscope part of the ADS800A series. It features 4 channels with a bandwidth of 200MHz. The ADS800A series has a great price-to-performance ratio compared to many of its competitors, with a higher memory depth of 50Mpts and a good 700,000wfm/s waveform capture rate. Additionally, it comes with many interfaces, such as USB, LAN and HDMI. Furthermore, all decoding options are included by default, making the device quite versatile without needing to buy additional options. Finally, the ADS824A features an embedded web server, allowing users to operate the oscilloscope through a browser. Finally, the device features a 7" touchscreen LCD with multi-touch controls.
Model overview
| Model |
ADS804A
|
ADS814A
|
ADS824A
|
|---|
| Bandwidth |
70 MHz |
100 MHz |
200 MHz |
| Price |
319
€319.00
Excl. VAT
|
369
€369.00
Excl. VAT
|
459
€459.00
Excl. VAT
|
Specifications
| Channels | 4 |
| Memory depth | 50 Mpts (divided by number of active channels) |
| Sample rate | 1.25 GS/s (divided by number of active channels) |
| Waveform capture rate | 700,000 wfm/s |
| Vertical resolution | 12 bits |
| Vertical scale | 500 µV/div - 10 V/div |
| Horizontal scale | 1 ns/div - 1 ks/div |
| Interfaces | USB Host, USB Device, LAN, Pass/Fail, Trigger Out, HDMI |
| Decoding | IIC, SPI, UART/RS232, CAN, LIN |
| Display | 7" TFT LCD (1024x600) |
| Dimensions | 260 x 160 x 78 mm |
| Weight | 1.5 kg |
Accessoires
- 4 passive probes
- Power cord
- Power adapter
- USB cable
Downloads
(10.1 MB)
