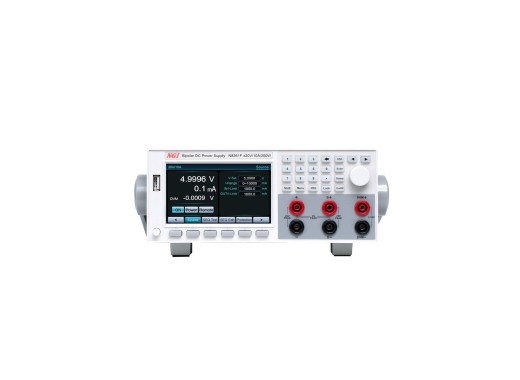

NGI N8361F 4-quadrant power supply
Details
The NGI N8361F is a programmable 4-quadrant power supply that features bi-directional voltages. This power supply supports bi-directional voltage and current, allowing you to output both positive and negative values. It also supports bi-directional current flow, so it can both source and sink current at positive and negative voltages. The bidirectional support is good for the relative low price of this power supply. The N8361F can handle up to 200W, a voltage of -20V - 20V and a current of -10A - 10A, and has accuracy up to 1μA and a fast rise time of 50μs.
The power supply comes with several testing features, such as power mode, charging mode, battery internal resistance simulation, internal resistance simulation, SOC simulation and fault simulation. These features make it suitable for a wide range of applications, including battery charging and discharging, power supply testing, and electronic device testing. The N8361F also has a one-channel built-in digital voltmeter with a voltage range of -30V to 30V and a resolution of 0.1V. Finally, all this information is displayed on a 5" high-resolution color screen and the power supply features RS232 and LAN interfaces.
Specifications
| Number of quadrants | 4 |
| Channels | 1 |
| Maximum voltage | ± 20 V |
| Maximum current | ± 10 A |
| Maximum power | 200 W |
| Resolution (DVM) | 0.1 mV |
| Rise time | 50 μs |
| Interfaces | LAN, RS232, CAN |
| Display | 5" TFT |
| Dimensions | 88 x 214 x 388 mm |
| Weight | 4 kg |
Accessories
The N8361F comes with:
- Power cord
Pros and cons
- Great price-performance ratio
- Fast rise time
Downloads
| N8361F user manual |  (2.64 MB) | Download |
| N8361F datasheet | (774.55 KB) | Download |
