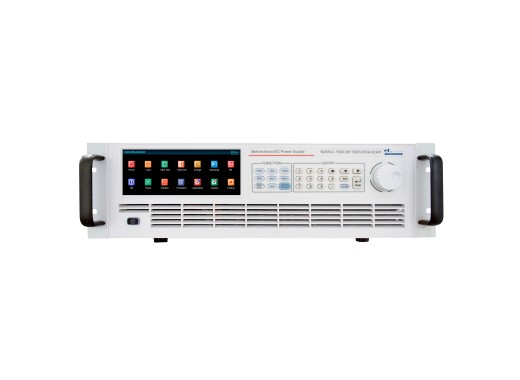

NGI N35514-360-80 bi-directional power supply

7900 €7,900.00 Excl. VAT

Loading stock info

Product number: ELE009531

Lowest price guaranteed

Details

The NGI N35514-360-80 is a programmable, bi-directional DC power supply rated for a maximum power of 14kW. It has a maximum voltage of 360V and a current range of -80-80A and features a resolution of 1mV/0.1mA. The dual-quadrant nature of the power supply allows it to act as both a source and a sink, providing external power as well as absorbing power. It also features a high regenerative efficiency of up to 93%, reducing overall power consumption. A great feature of the instrument is that it has a fast dynamic response, with a full-load rise time being ≤5ms. The power supply has a 6.8-inch LCD screen in a small form factor (3U height) and also includes communication interfaces such as LAN, CAN, RS232 and RS485.

The N35500 series supports parallel mode, which can be used to create power supplies rated up to 420kW. With strong load regulation and support for SCPI and Modbus protocols, the power supplies also have free software) remote operation and data recording. The N35500 series also comes with free PV simulation software (NS91000) & battery simulation software (NS81000) for additional functionalities.

Looking for more power or additional models in the N35500 series? Please contact us to request a tailored offer or inquire about other configurations.

Model overview

Model	Total power	Voltage range	Current range	Price
N35514-360-80	14 kW	0 – 360 V	-80 – 80 A	7900 €7,900.00 Excl. VAT
N35522-360-160	22 kW	0 – 360 V	-160 – 160 A	9754 €9,754.00 Excl. VAT
N35532-360-240	32 kW	0 – 360 V	-240 – 240 A	13330 €13,330.00 Excl. VAT
N35542-360-240	42 kW	0 – 360 V	-240 – 240 A	17410 €17,410.00 Excl. VAT
N35514-500-65	14 kW	0 – 500 V	-65 – 65 A	8033 €8,033.00 Excl. VAT
N35522-500-130	22 kW	0 – 500 V	-130 – 130 A	9887 €9,887.00 Excl. VAT
N35532-500-180	32 kW	0 – 500 V	-180 – 180 A	13463 €13,463.00 Excl. VAT
N35542-500-195	42 kW	0 – 500 V	-195 – 195 A	17542 €17,542.00 Excl. VAT
N35514-750-65	14 kW	0 – 750 V	-65 – 65 A	8311 €8,311.00 Excl. VAT
N35522-750-130	22 kW	0 – 750 V	-130 – 130 A	10205 €10,205.00 Excl. VAT
N35532-750-180	32 kW	0 – 750 V	-180 – 180 A	13699 €13,699.00 Excl. VAT
N35542-750-195	42 kW	0 – 750 V	-195 – 195 A	17753 €17,753.00 Excl. VAT
N35528-1000-65	28 kW	0 – 1000 V	-65 – 65 A	12417 €12,417.00 Excl. VAT
N35532-1000-80	32 kW	0 – 1000 V	-80 – 80 A	13595 €13,595.00 Excl. VAT
N35542-1000-80	42 kW	0 – 1000 V	-80 – 80 A	17807 €17,807.00 Excl. VAT
N35522-1500-60	22 kW	0 – 1500 V	-60 – 60 A	10165 €10,165.00 Excl. VAT
N35532-1500-60	32 kW	0 – 1500 V	-60 – 60 A	14655 €14,655.00 Excl. VAT
N35542-1500-65	42 kW	0 – 1500 V	-65 – 65 A	18363 €18,363.00 Excl. VAT
N35522-2250-60	22 kW	0 – 2250 V	-60 – 60 A	10867 €10,867.00 Excl. VAT
N35532-2250-60	32 kW	0 – 2250 V	-60 – 60 A	15330 €15,330.00 Excl. VAT
N35542-2250-65	42 kW	0 – 2250 V	-65 – 65 A	19688 €19,688.00 Excl. VAT

Specifications

Static modes	CV, CC, CP, CR
Outputs	1
Output switch	Only ON or OFF
Resolution	1 mV / 0.1 mA
Ripple	≤ 400 mV / ≤ 200 mA
Protection	OVP, OCP, OPP, UVP, UCP
Interfaces	LAN, CAN, RS232, RS485
Display	6.8" color LCD
Dimensions	13.2 x 48.2 x 75.5 cm
Weight	34 kg
