NanoVNA RF demo kit

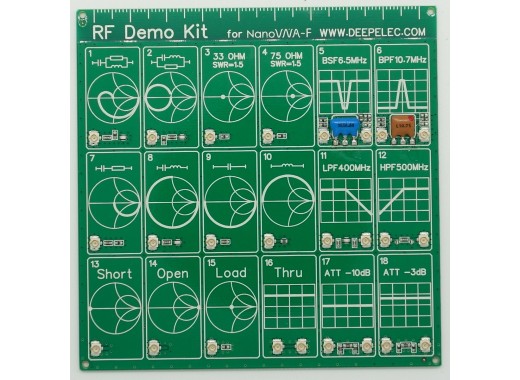

The NanoVNA RF demo kit includes 18 test patterns. These patterns are used to demonstrate various network parameters and behaviors that can be analysed using a VNA. The demo kit can also be used to test and calibrate a vector network analyzer. The NanoVNA RF demo kit is compatible with NanoVNA-H4 and NanoVNA-H, among others. The demo kit includes a Smith chart on the back. This can be used to learn to interpret the Smith chart and learn the basic principles of impedance matching. The demo kit can be used for both educational purposes as for professional purposes. The kit has a size of 10 x 10cm.

Accessories

• 2x SMA cable RG178

Downloads

NanoVNA RF demo kit quick guide

(117.71 KB)

Download
