379.34 €379.34 Excl. VAT
This product is retired
  •
Product number: ELE002529

Be the first to review this product

Details

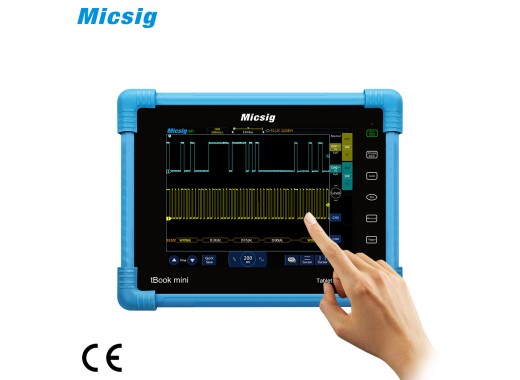

If you don't want a large stand-alone oscilloscope, this compact 2-channel tablet oscilloscope by Micsig is the perfect alternative. With a bandwidth of 150 MHz, a 28 Mpts memory depth and a 1 GSa/S sample rate, this oscilloscope certainly measures up to the average stand-alone oscilloscope. The high recording speed makes it easy to capture more signal waveforms and the low noise ensures a very accurate measurement of these waveforms. In addition, this oscilloscope has 31 automatic built-in measurement programs and a wide range of interfaces.
The TO1152+ features an 8" LCD touchscreen for easy operation. The so-called signal probability can be shown by a special display function. This function increases the clarity of the signal in the places where the signal occurs more frequently and dims it in the places where it occurs less frequently. Furthermore, the display has a multi-touch function enabling, for example, a screenshot to be taken quickly by swiping down with four fingers. The 8GB internal memory can be used to store screenshots and waveforms locally.

Plus version

This scope concerns the "Plus" version. This means that the scope comes with the following options free of charge:

  • HDMI connector
  • 7.4V/8000 mAh lithium battery
  • Serial bus decoding (UART, I2C, SPI, CAN, LIN)
  • Carrying strap
  • Screen-protector film

Specifications

Bandwidth150 MHz
Channels2
Sample rate1 GSa/S
Memory depth28 Mpts
Noise≤1 mV
Trigger functionsEdge, Pulse, Logic, Time-out, Black PW, Slope, N Edge, Video
Maximum capture rate80,000 wfm/s
Bandwidth limitations20 MHz, High pass, Low pass
InterfacesWi-Fi, LAN, HDMI, USB Host, USB Device, GND, DC Power, Trigger Out
Internal memory8 GB
Display8" TFT LCD (800x600 Px)
Dimensions250x210x55 mm
Battery8000 mAh Li-ion (Lifespan: 5 hours)

Video

The following video by Micsig lists all information again.



Accessories

The Micsig TO1152+ will standardly be delivered with:
  • 2 Probes (200MHz, x10)
  • Adapter (DC12V/5A)
  • Power cord
  • Screenprotector
  • Calibration certificate
