Name: Micsig STO2202C oscilloscope
SKU: STO2202C
Price: 660.33 EUR
Availability: OutOfStock

660.33 €660.33 Excl. VAT

This product is retired

Product number: ELE005495

Be the first to review this product

Lowest price guaranteed

Details

This model is discontinued. Instead we recommend the Micsig TO2004 oscilloscope.

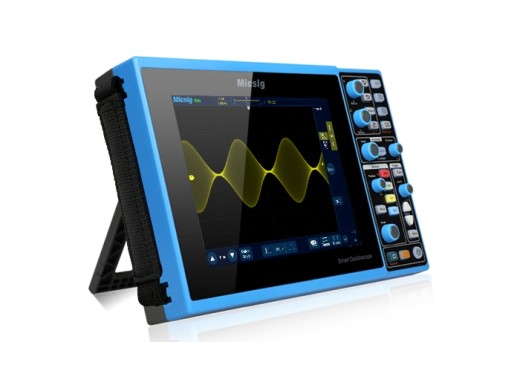

The Micsig STO2202C oscilloscope is a full-touch digital oscilloscope with 2 channels belonging to the Micsig tBook series. The oscilloscope captures real-time signals and observes the details of repeated signals. The Micsig STO2202C has a capture rate of 270.000 wfm/s. Due to the high capture rate, more signal waveforms can easily be generated and the low noise ensures a very accurate measurement of these waveforms.

The oscilloscope has a particularly large TFT color display which is also very clear and very easy to read. Additionally, the signal curves, the FFT display, and other functions can be displayed at the same time. The display also has a function with which the signal probability can be displayed, it ensures that the brightness of the signal increases in places where this signal occurs more often and is made less bright in places where it occurs less often.
Signals can be stored on the internal memory of 8GB and it is also possible to look back and zoom in to see the signals in detail.
The oscilloscope can be operated using the touch display and various buttons as well as via APP remote control with which the oscilloscope can be controlled remotely. App remote control is available for all models of the STO2000C series. Furthermore, the Micsig STO2202C oscilloscope also has 31 automatic built-in measuring programs and many different interfaces while the software runs on a powerful Android system and works essentially the same as a tablet. For example, you can connect to the Internet via WiFi to send data, or take photos and videos. The scope also has an HDMI connection so that the scope can be connected for example to a beamer for a live demonstration.

This scope can also be extended with 1553B and 429 decoding options. For this option, you can contact us, price on request.

Model overview

Model	STO1152C Plus	STO2202C	STO2302C
Channels	2	2	2
Bandwidth	150 MHz	200 MHz	300 MHz
Rise time	2.33 ns	1.75 ns	1.16 ns
Sample rate	1 GSa/S	2 GSa/S	2 GSa/S
Memory depth	28 Mpts	280 Mpts	280 Mpts
Waveform capture rate	80.000 wfm/s	270.000 wfm/s	270.000 wfm/s
Price	443.76 €443.76 Excl. VAT	660.33 €660.33 Excl. VAT	726.45 €726.45 Excl. VAT

Specifications

Vertical scale factor	1 mV/div - 10V/div
Time base range	1 ns/div - 1 ks/div
Noise	≤ 1mV
Internal storage	8 GB
Interfaces	Wi-Fi, LAN, HDMI, USB Host, USB Device, DC power
Decoding options	I2C, SPI, UART, CAN, LIN
Display	8" TFT LCD Multi-point touchable capacitive (800 x 600)
Dimensions	280 x 180 x 50 mm
Weight	1442 grams
