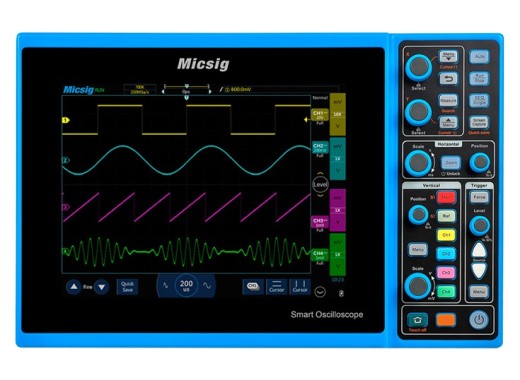

Micsig STO1152C Plus digital oscilloscope

443.76 €443.76 Excl. VAT

This product is retired

Product number: ELE003241

Be the first to review this product

Lowest price guaranteed

Details

The Micsig STO1152C Plus oscilloscope is a full-touch digital oscilloscope with 2 channels belonging to the smart oscilloscope series. The oscilloscope captures real-time signals and observes the details of repeated signals. The Micsig STO1152C has a capture rate of 80.000 wfm/s. Due to the high capture rate, more signal waveforms can easily be generated and the low noise ensures a very accurate measurement of these waveforms.

The oscilloscope has a particularly large TFT color display. This display is very clear and very easy to read. The signal curves, the FFT display, and other functions can be displayed at the same time. The display also has a function with which the signal probability can be displayed. This function ensures that the brightness of the signal increases in places where this signal occurs more often and is made less bright in places where it occurs less often.
Signals can be stored on the internal memory of 8GB. It is possible to look back and zoom in to see the signals in detail.
The oscilloscope can be operated using the touch display and various buttons. The oscilloscope can also be operated with a mouse. This can be either a wireless mouse or a wired mouse. The STO1000C series also has APP remote control, with which the oscilloscope can be controlled remotely.

The Micsig STO1152C Plus oscilloscope also has 31 automatic built-in measuring programs and many different interfaces. The software runs on a powerful Android system and works essentially the same as a tablet. For example, you can connect to the Internet via WiFi to send data, or take photos and videos. The scope also has an HDMI connection so that the scope can be connected for example to a beamer for a live demonstration.

Plus version

This scope concerns the "Plus" version. This means that the scope comes with the following options free of charge:

HDMI connector
7.4V/8000 mAh lithium battery
Serial bus decoding (UART, I2C, SPI, CAN, LIN)
Carrying strap
Screen-protector film

This scope can also be extended with 1553B and 429 decoding options. For this option, you can contact us, price on request.

Model overview

The difference between the models is the number of channels and bandwidth.

Model	STO1104C Plus	STO1152C Plus
Channels	4	2
Bandwidth	100 MHz	150 MHz
Price	491.74 €491.74 Excl. VAT	443.76 €443.76 Excl. VAT

Specifications

Channels	2
Bandwidth	150 MHz
Sample rate	1 GSa/S
Memory depth	28 Mpts
Capture rate	80.000 wfm/s
Vertical scale factor	500 uV/div ~ 5V/div (1MΩ input, 500 uV/div bandwidth 20MHz)
Time base range	2 ns/div ~ 1 ks/div
Noise	≤ 1mV
Decoding type	UART, I2C, SPI, CAN, LIN
Display	8" TFT LED Multi-point touchscreen, 24 bit
Internal storage	8 GB
Interfaces	Wi-Fi, LAN, HDMI, USB Host, USB Device, DC power
Dimensions	280 x 180 x 50 mm
Weight	1425 grams
