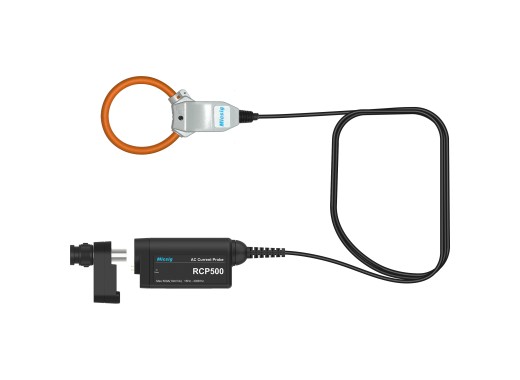

Micsig RCP500 AC current probe
Details
The Micsig RCP500 current probe is a probe that can measure AC current from 200 mA to 500 A with a bandwidth of 15 Hz to 300 kHz. Thanks to the Rogowski coil design the flexible loop can easily be wound around a cable, which enables measurements in hard to reach places. The RCP500 has an accuracy of 1% and a noise of less than 2mV. The probe is powered by a 5V USB output and is thanks to the BNC output compatible with any oscilloscope.
Specifications
| Bandwidth | 15 Hz - 300 kHz |
| Range | 200 mA - 500 A (peak) |
| Accuracy | 1% |
| Maximum diameter | 50 mm |
| Noise | < 2 mV |
| Power supply | 5V USB |
| Connector type | BNC |
| Cable length | 2 m |
Accessories
The Micsig RCP500 is supplied including:
- USB cable
Pros and cons
- Thanks to the flexible loop, it can be used in hard-to-reach places
- Limited frequency range
Downloads
