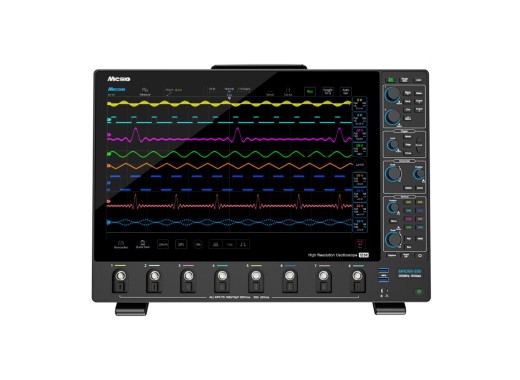

The Micsig MHO68-350 is a 350MHz oscilloscope part of the high-end MHO6 8-channel series. This MHO6 series features a 12-bit resolution, 6GS/s sampling rate, 1800 Mpts memory depth and a high waveform capture rate of 280,000wfm/s. The device is designed for engineers, scientists and educators who require high-precision testing and analysis with even the most cutting-edge devices. Additionally, the MHO6 series comes with the BNC interface for easy probe connection. Furthermore, the oscilloscope comes with an outstanding 16" 1200p touchscreen display. Finally, the oscilloscope supports PC and smartphone remote control and can simultaneously save data on multiple channels.
Model overview
| Model | MHO68-350
| MHO68-500
| MHO68-1000
|
|---|
| Bandwidth |
350 MHz |
500 MHz |
1 GHz |
| Rise time |
≤ 1 ns |
≤ 0.7 ns |
≤ 0.4 ns |
| Price |
11999
€11,999.00
Excl. VAT
|
12999
€12,999.00
Excl. VAT
|
16999
€16,999.00
Excl. VAT
|
Specifications
| Channels | 8 |
| Memory depth | 1800 Mpts |
| Sample rate | 6 GS/s |
| Waveform capture rate | 280,000 wfm/s |
| Built-in storage | 32 GB |
| Vertical resolution | 12 bits |
| Vertical scale | 1 mV/div - 5 V/div |
| Horizontal scale | 200 ps/div - 1 ks/div |
| Interfaces | USB 3.0 Host, USB Type-C, LAN, HDMI |
| Decoding | RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, IIC, ARINC429, 1553B |
| Display | 16" touchscreen LCD (1920x1200) |
| Dimensions | 443 x 307 x 35 mm |
| Weight | 5.7 kg |
Accessories
- 8x Passive probes
- Wireless network card
- Power adapter
- Power cord
- Calibration certificate
Pros and cons
- Large display
- 32 GB internal storage
- High memory depth
- High sample rate
Downloads
