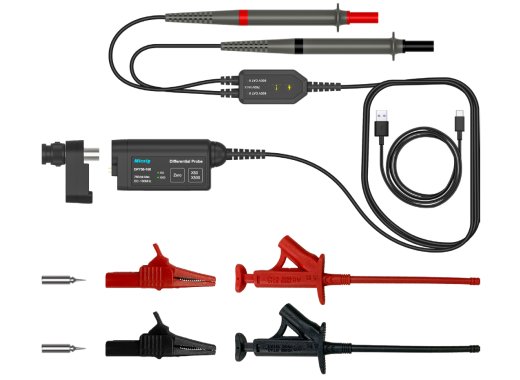

Micsig DP750-100 differential probe
Details
The Micsig DP750-100 is a high voltage differential probe, capable of measuring at 100MHz bandwidth and up to 750V peak. It allows you to very conveniently measure large differential voltages without damaging your oscilloscope.
This probe excels in portability because of its small bench footprint. It is compatible with most brands of oscilloscopes as it draws its power from USB. On Micsig branded tablets the USB cable is even eliminated as it draws power directly from its UPI interface. Furthermore, it features an instant-zero calibration button on its body.
Model overview
| Model | DP10007 | DP10013 | DP20003 | DP750-100 |
|---|---|---|---|---|
| Max voltage | ±700 V at 100x mode | ±1300 V at 500x mode | ±5600 V at 2000x mode | ±750 V at 500x mode |
| Attenuation | 10x, 100x | 50x, 500x | 200x, 2000x | 50x, 500x |
| Max input voltage (compared to ground) | 600 V, CAT II 1000 V, CAT I | 1000 V, CAT II | 1000 V, CAT III | 1000 V, CAT II |
| Total range (DC+ACpp) | 70 V (10x) 700 V (100x) | 130 V (50x) 1300 V (500x) | 560 V (200x) 5600 V (2000x) | 75 V (50x) 750 V (500x) |
| Output voltage | ≤ 7 V | ≤ 3 V | ≤ 3 V | ≤ 1.5 V |
| CMRR | ≤ -80 dB (50 Hz / DC) ≤ -60 dB (20 KHz) ≤ -45 dB (1 MHz) | ≤ -80 dB (DC) ≤ -60 dB (100 KHz) ≤ -50 dB (1 MHz) | ≤ -80 dB (DC) ≤ -60 dB (100 KHz) ≤ -50 dB (1 MHz) | ≤ -80 dB (DC) ≤ -60 dB (100 KHz) ≤ -50 dB (1 MHz) |
| Power supply | USB (5V), 1.25 W | USB (5V), 0.85 W | USB (5V), 0.85 W | USB (5V), 1 W |
| Cable lengths | Input: 45 cm Output: 90 cm | Input: 45 cm Output: 90 cm | Input: 45 cm Output: 90 cm | Input: 15 cm Output: 100 cm |
| Price |
Specifications
| Bandwidth | 100 MHz |
| Channels | 1 |
| Rise time | 3.5 ns |
| Dimensions | 80 x 37 x 22 mm (PSU body) 49 x 25 x 12.5 mm (signal body) |
Accessories
The following is included with the product:
- 1 pair of alligator clips
- 1 pair of test hooks
- USB cable
- Case
Downloads
| Micsig DP750 user manual |  (632.77 KB) | Download |
