Micsig CP1510 AC/DC current probe
Details

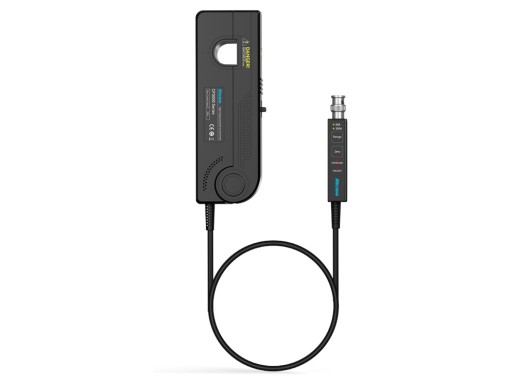

The Micsig CP1510 current probe can measure both DC and AC precisely and reliably, with a high frequency. The probe uses a standard BNC interface for oscilloscopes or a multi-connector for adapters. The maximum current that can be measured is 300A peak and 150Arms, and the bandwidth is DC - 10MHz, which makes the probe ideal for measuring high-speed signals. The probe has two optional ranges of 30A and 150A, making it ideal to measure both large and small currents. Moreover, the probe has an automatic and manual zero adjustment and an overload indicator. Automatic and manual zero adjustment improve measurement stability, while the built-in overload indicator protects the probe during high-current events.
Model overview
| Model | CP3005 | CP3008 | CP1510 |
|---|---|---|---|
| Bandwidth | DC - 5 MHz | DC - 8 MHz | DC - 10 MHz |
| Rise time | < 70 ns | < 53 ns | < 46 ns |
| Max. current | 300 Arms / 500 Apk | 300 Arms / 500 Apk | 150 Arms / 300 Apk |
| Price |
Specifications
| Measurement range | 10 mA – 50 Arms 100 mA – 300 Arms |
| Signal delay | ≤ 40 ns |
| Overload indication | Yes |
| Power supply | 12 V |
| Jaw diameter | 20 mm |
| Cable lenght | 2 m |
| Dimensions (probe head) | 177 × 64 × 27 mm |
| Dimensions (control unit) | 96 × 40 × 17 mm |
| Weight | 460 g |
Accessories
The Micsig CP1510 current probe comes with the following accessories:
- Power cord
Pros and cons
- High bandwidth
- High current
Downloads
| Micsig CP3000 series user manual |  (1.75 MB) | Download |
| Micsig CP3000 series datasheet | (901.28 KB) | Download |
