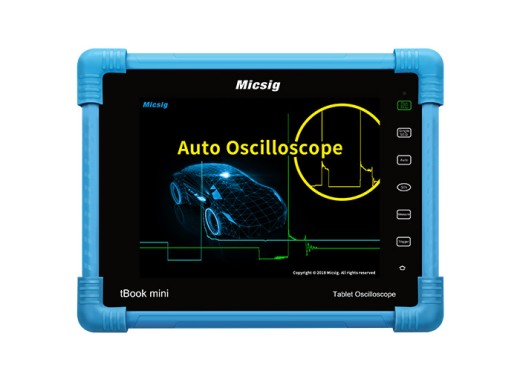

The Micsig ATO1104 is the 4-channel version in the series of tBook mini oscilloscopes specially made for the automotive sector. The oscilloscopes have an integrated
automotive diagnostic software', providing them with a wide range of diagnostic tests relevant to the automotive sector. More information about
these functions can be found in the datasheet at the bottom of this page.
The oscilloscopes are equipped with an 8" LCD touchscreen which makes it easy to operate. The display has a function that allows the so-called
signal probability can be displayed. This function ensures that the brightness of the signal increases in places where this signal is more common and where it is darker.
is made in places where it is less common. Furthermore, the screen has a multi-touch function that, for example, can be used to move four fingers down to the top of the screen.
swiping, a quick screenshot can be made. The internal memory of 8 GB can be used to store screenshots and waveforms locally. The measured waveforms
can be displayed in real-time on a smartphone. It is also possible to connect a computer or projector.
Models
The models within the ATO1000 series differ only in the number of channels.
Model
ATO1102
ATO1104
Number of channels
2
4
Price (2 channels)
536.36€536.36Excl. VAT
549€549.00Excl. VAT
Specifications
Bandwidth
100 MHz
Sample Rate
1 GSa/S (single channel)
Memory depth
28 Mpts (single channel)
Capture Rate
80,000 wfm/s
Diagnotic functions
Ignition, sensor, actuators, networks, charging, communication test, pressure test
Modulation bandwidth
Full bandwidth, low-pass
Display
8" TFT Touch-screen LCD (800 x 600 Px)
Internal memory
8 Gb
Interfaces
Wi-Fi, LAN, HDMI, USB Host, USB Device, GND, DC Power
Battery
8000 mAh
Dimensions
250 x 200 x 55 mm
Video
In the next video of Micsig, all the information is clearly listed again.
Accessories
The ATO1000 series is supplied as standard including:
(18.56 MB)
