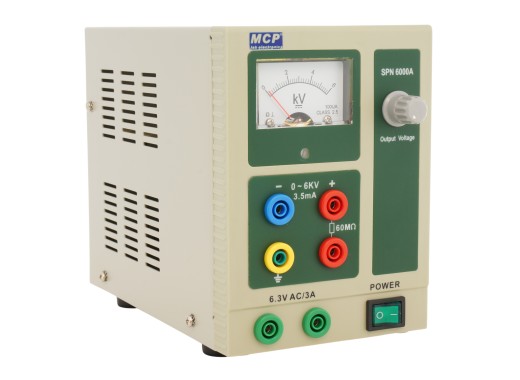

MCP SPN6000A power supply
Details
This analog power supply has multiple DC outputs and one AC output. The DC output has a voltage range of 6kV and a max current of 3.5mA. There is also an extra DC output that contains a 60MΩ series resistance for security. The AC output has a set output ratio of 6.3V and 3A.
This power supply is a 'Constant Voltage (CV)' supply which means that the voltage is set by the user and the required output current is delivered automatically. Setting the voltage is really easy due to the simple analog rotary knob. The supply also has a protection against short-circuiting and overloading.
Specifications
| Output voltage range DC | 0-6k Volt |
| Max Load current DC | 3.5 mA |
| Max output power DC | 5 W |
| Output voltage AC | 6.3 Volt |
| Load current AC | 3 A |
| Max output power AC | 19 VA |
| Accuracy of voltage indication | ± 2%+2, 2.5% over whole range |
| Load factor stabilization coefficient | <0.5% |
| Short circuit protection | ✔ |
| Weight | 4.5 kg |
| Dimensions | 154 x 108 x 240 mm |
