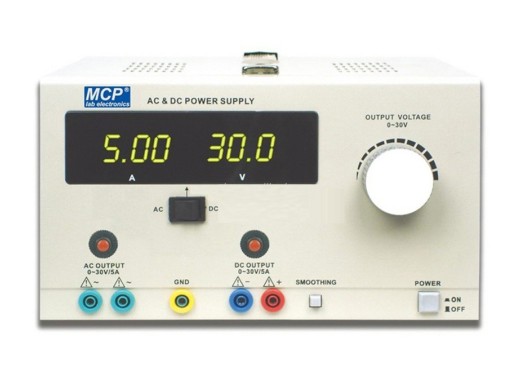

MCP M10-AD360-5 AC & DC power supply
Details
The MCP M10-AD360-5 is a lab power supply that can generate both DC and AC voltage and current. The power supply can provide voltage in the range of 0-30V and current in the range of 0-5A. It is only possible to set the voltage, the current is not adjustable on this power supply. However, the M10-AD360-5 does have a DC smoothing option, with which the generated DC signal can be flattened. The ability to generate AC and DC signals makes this a versatile lab power supply.
Specifications
| Voltage range | 0-30V (AC/DC) |
| Current range | 0-5A (AC/DC) |
| Power | 150W |
| Resolution | 100mV / 10mA |
| Short-circuit resistant | Yes |
| Overload protection | Yes |
| Dimensions | 260 x 160 x 260 mm |
| Weight | 7 Kg |
Accessories
The MCP M10-AD360-5 lab power supply comes standard with:
- Power cord
Pros and cons
- AC and DC
- Not programmable
- Current not adjustable
Downloads
| MCP M10-AD360-5 manual |  (31.39 KB) | Download |
