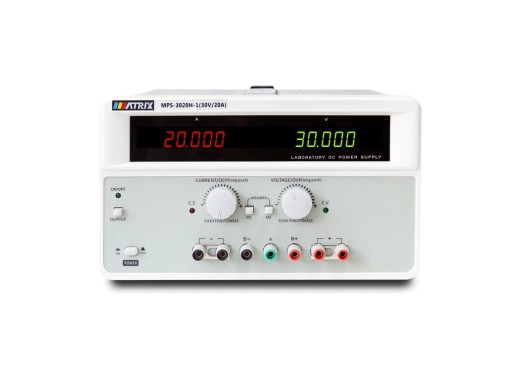

Matrix MPS-3020H-1 power supply
Details
The Matrix MPS-3020H-1 is a single-channel linear DC power supply. It is suitable for up to 600W of power, 30V and 20A. The device features two memory groups for quick recall of settings. The power supply is equipped with two knobs for precisely configuring current and voltage, the current can also be adjusted without causing a short circuit. The device has a good 1mV/1mA resolution and a voltage compensation function to ensure high precision. Additionally, the startup circuit is designed to operate slowly, which ensures a smaller current pulse. Finally, the power supply has OVP/OCP functionality.
Specifications
| Total power | 600 W |
| Outputs | 1 |
| Voltage range | 0 - 30 V |
| Current range | 0 - 20 A |
| Resolution | 1 mV / 1 mA |
| Ripple | 3 mV / 5 mA |
| Protection | OCP, OVP |
| Dimensions | 250 x 150 x 330 mm |
| Weight | 13 kg |
Accessories
The MPS-3020H-1 includes:
- 1x Power cord
- 2x Alligator test lead
Pros and cons
- Cost-effective
Downloads
| MPS-3020H-1 data sheet |  (2.06 MB) | Download |
