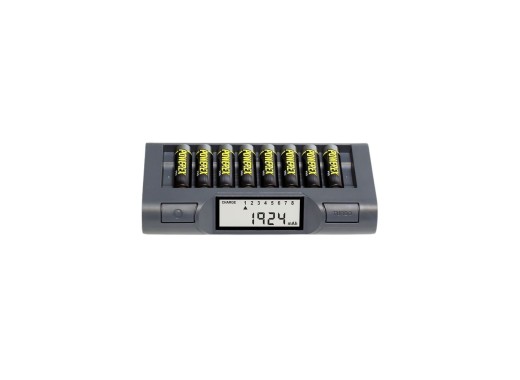

The MH-C940 charger analyser from Powerex is a combination of an 8-cell turbo charger and a battery health analyser. With 8 independent channels, different combinations of AA or AAA batteries can be charged at the same time. You can choose between a turbo charge or default soft mode. In the turbo charge mode, the batteries are charged with 1000 mAh and in the case of the soft mode with 500 mAh.
The MH-C940 also has a conditioning mode that has a deep battery conditioning system to rejuvenate older batteries with capacity readout.
Battery analysis provides true capacity display for the most accurate data and the backlit LCD screen makes it easy to see all the information at a glance. Furthermore, a fanless thermal management system ensures that the batteries remain cool during charging while remaining quiet.
Specifications
| Supported batteries | AA/AAA |
| Number of cells | 1-8 |
| Battery chemistry supported | NiMH/NiCd |
| Charging time | 2 hours (turbo), 4 hours (default) |
| Charge current | 500/1000 mAh |
| Discharge current | 200 mAh |
| Display | LCD (backlit) |
| Dimensions | 178 x 89 x 38 mm |
Accessories
The MH-C940 product package contains:
- 1x AC Power Supply
- 8 AA/AAA Battery Holder
Pros and cons
- Determines actual capacity
- Prevents overheating
- Individual charging slots
- Quiet thermal protection
