GW Instek LCR-914
Details
This series has been discontinued and has been replaced by the LCR-1000 series.

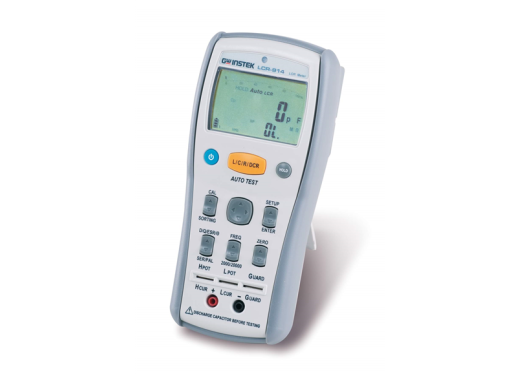

The LCR 900 series from GW Instek is a series of handheld LCR meters with a wide range of applications. The test frequency can be set from 100 Hz to 1 kHz on the LCR-914. The LCR-900 meters have a double display which makes it easy to display two measured values simultaneously. The main display of 20.000 counts offers space for capacitance, resistance or induction or resistance. The smaller display, of 2000 counts, offers space for secondary parameters such as quality factor or equivalent series of resistance.
The meters offer two measurement methods, 2-wire and 5-wire measurements, both offering their own advantages. For example, a 5-wire measurement is more accurate.
The meters also offer functions such as data hold, tolerance sorting and zero mode. In addition, it is also possible to power this meter via USB.
Models
The models in the LCR-900 series differ mainly in measurement frequencies, supplied accessories and connectivity.
| Model | LCR-914 | LCR-916 |
| Test frequency | 100 Hz / 120 Hz / 1 kHz | 100 Hz / 120 Hz / 1 kHz / 10 kHz / 100 kHz |
| USB | Only power supply | Power supply and software |
| Price |
Specifications
| Precision | ± 0.2 % | ||||||||||||
| Measuring range | |||||||||||||
|
|||||||||||||
| Equivalent circuit | Parallel / series | ||||||||||||
| Screen | LCD mono, 20,000 counts and 2000 counts | ||||||||||||
| Connectivity | USB | ||||||||||||
| Power supply | 4x AA, USB, AC adapter | ||||||||||||
| Dimensions | 95 x 207 x 52 mm | ||||||||||||
| Weight | 630 g | ||||||||||||
For more information, please refer to the manual below. In addition here the software can be downloaded.
Accessories
The LCR-914 will be delivered including:
- Short-circuit block
- Measure cord with alligator clamps 2x
- Batteries
Downloads
| 82CR-91600MA1 |  (1.76 MB) | Download |
| DTC sample | (126.04 KB) | Download |
