Details

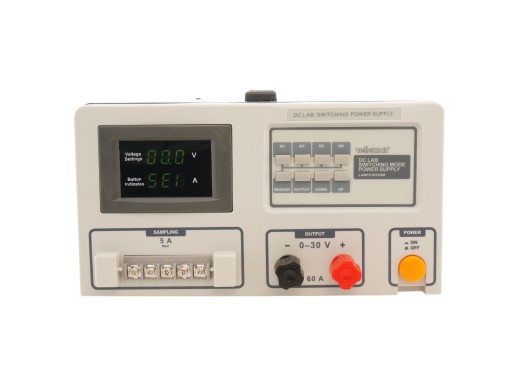

The LABPS3060SM is part of a series of power supplies that differ from each other based on voltage and current. This model is a switching DC lab power supply, capable of supplying 60 Amps, at voltages of 30 Volts. The voltage can be set, but the current cannot be set separately. The values for the current and voltage are shown on the LCD screen. In addition, these power supplies have a current limitation function. There is also a short-circuit protection that automatically switches the power supply off and on again when the short-circuit has been corrected.

Specifications

Voltage 0 - 30 V
Current 60 A
Ripple voltage (hp-pk) < 120 mV
Fused
yes
Input voltage 230 V AC 50 Hz
Dimensions 214 x 87 x 336 mm
Weight 4.4 kg

Other specifications can be viewed in the guide.

Model overview

In the table below you can compare this model with other models in this series.

Model LABPS3020SM LABPS3030SM LABPS3060SM LABPS6030SM
Voltage 0 - 30 V 0 - 30 V 0 - 30 V 0 - 60 V
Current 0 - 20 A 0 - 30 A 60 A 30 A
Ripple voltage (hp-pk) < 100 mV < 100 mV < 120 mV < 20 mV
Automatic C16 fuse - -
yes
yes
Price (4 channels) 164.46 €164.46 Excl. VAT 247.11 €247.11 Excl. VAT 470.25 €470.25 Excl. VAT 470.25 €470.25 Excl. VAT

By clicking on the name of the model the product pages of the specific product can be visited.
