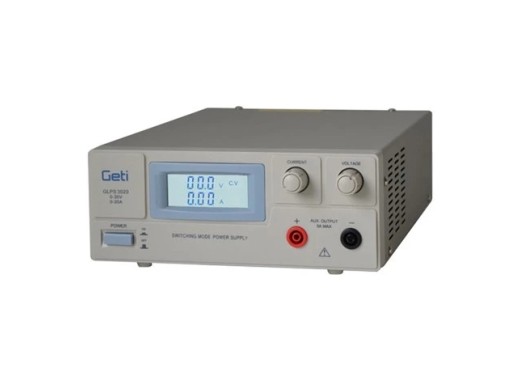

0-30V 0-20A power supply

185.95 €185.95 Excl. VAT
Loading stock info
  •
Product number: ELE000755

Be the first to review this product

Lowest price guaranteed

Details

This power supply belongs to the LABPS3000SM series and is capable of supplying currents up to 20A and voltages up to 30V. The power supply is equipped with an LCD screen for displaying the voltage and current. This model also has a regulated voltage indication. This model also has a short-circuit protection that automatically switches the power supply off and on again.

Model overview

The power supplies in this series differ mainly in their maximum voltage and current that can be supplied. In addition, the heavier models have a higher weight and larger dimensions. The specifications are shown in the table below.

Model LABPS3020SM LABPS3030SM LABPS3060SM LABPS6030SM
Voltage 0 - 30 V 0 - 30 V 0 - 30 V 0 - 60 V
Current 0 - 20 A 0 - 30 A 0 - 60 A 0 - 30 A
Ripple voltage (pk-pk) < 100 mV < 100 mV < 120 mV < 20 mV
Price 185.95 €185.95 Excl. VAT 313.22 €313.22 Excl. VAT 495.04 Regular Price: €536.36 Now: €495.04 Excl. VAT 578.51 €578.51 Excl. VAT

Specifications

Adjustable voltage
Yes
Adjustable current
Yes
Fuse T4
Dimensions 336 x 87 x 214 mm
Weight 2.7 kg

For more information, see the manual below.
