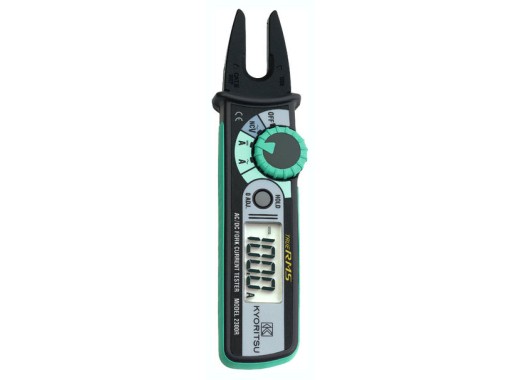

Kyoritsu 2300R mini fork current tester
Details
The Kyoritsu 2300R mini fork current tester is a very compact true RMS AC/DC current clamp which can measure up to 100A. Due to the fact that this current clamp has a fork-type design, it is not necessary to close the loop around a conductor. This makes it easy to measure in very compact spaces. The clamp has a built-in warning which notifies a user if an AC voltage is present with an audible signal. Next to this, the 2300R features auto power-off, zero-adjust and data-hold functionalities.
Specifications
| Current measurements (AC/DC) | 0 - 100A (±2.0% + 5) |
| Maximum counts | 1049 |
| Crest factor | 2.5 |
| Maximum conductor size | ⌀ 10mm |
| True RMS | Yes |
| Extra functionalities | Data hold, auto power-off, zero adjust, NCV, auto-range |
| Safety standard | CAT III 300V |
| Power source | R03 (AAA) x2 |
| Dimensions | 161.3 x 40.2 x 30.3 mm |
| Weight | 110g |
Accessories
The 2300R includes:
- Carrying case
- Batteries
Pros and cons
- Fork-type clamp
- Audible AC voltage notification
- Data-hold functionality
- Only measures current
