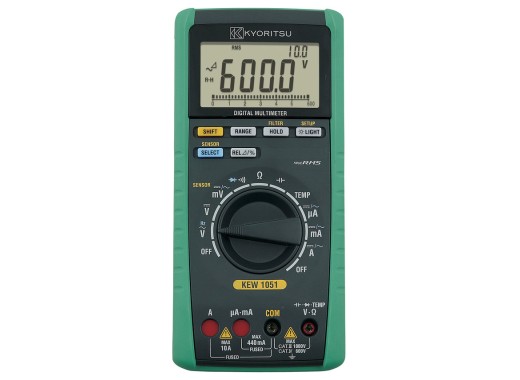

The Kyoritsu 1051 is a professional and complete True-RMS multimeter which can measure up to 1000 V / 10 A. The versatile multimeter is able to measure voltage, current, resistance, capacitance, frequency. and even temperature. The large LCD display with orange LED backlight makes for perfect readability, even in low-light scenarios.
The meter has a wide range of functions. User calibration, low-pass filter, and auto hold function all belong to the functionalities of the Kyoritsu 1051. When the function switch is not in current measurements, the safety shutters will close the input terminals for the current measurements and thus test leads cannot be plugged-in. Due to this, it is almost impossible to make the wrong connection.
Specifications
Max. Voltage DC/AC |
1000 V |
Max. Current DC/AC |
10.00 A |
Max. Resistance |
60.00 MΩ |
Continuity check |
600.0 Ω |
Max. Capacitance |
1000 µF |
Frequency |
10 Hz - 99.99 kHz |
Temperature |
-50 ℃ – 600.0 ℃ |
True RMS |
Yes |
Display |
6000 counts & backlight |
Safety category |
CAT IV 600V & CAT III 1000V |
Power Source |
4x AA batteries |
Dimensions |
192 x 90 x 49 mm |
Weight | 560 g (including batteries) |
Accessories
The Kyoritsu 1051 will be delivered including:
- Test leads
- 4 batteries
- 440 mA / 1000 V fuse
- 10 A / 1000 V fuse
- Calibration certificate
