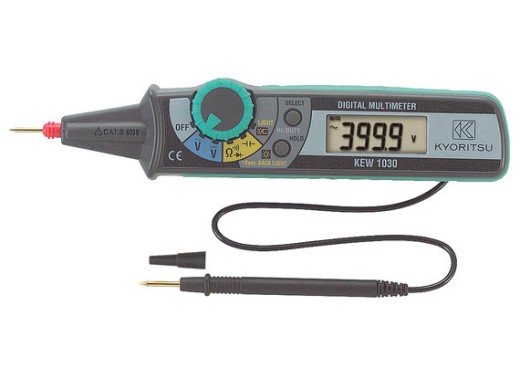

The Kyoritsu 1030 is a digital penmultimeter which is light in weight and simple to use. This multimeter features an ergonomic design to provide a comfortable and good feeling in hand. The integrated backlit LCD screen and small LED on the tip enable it to also be used in low-light situations. Even though it is a compact meter, it does not compromise on performance. The 1030 is able to measure AC and DC voltages, resistances, continuity, capacitance, duty cycle and frequency.
The Kyoritsu 1030 has a built-in data hold function to store a measurement. In addition to this, it will power off automatically and also inform the user when the battery is running empty.
Specifications
| Max. AC Voltage range | 600V |
| Max. DC Voltage range | 600V |
| Max. Resistance measuring range | 40MΩ |
| Max. Capacitance measuring range | 100µF |
| Frequency range | 5 Hz - 200 kHz |
| Duty Cycle range | 0.1 - 99.9 % |
| General | |
| Safety standard | CAT III 600V |
| Power source | 2x LR44 button-type battery |
| Dimensions | 190x39x31 mm |
| Weight | 100g |
Accessories
The Kyoritsu 1030 includes:
- Carrying Case
- 2x LR44 batteries
Pros and cons
- Data hold function
- Auto power-off
- Low battery warning
- LED to illuminate workspace
Downloads
(271 KB)
