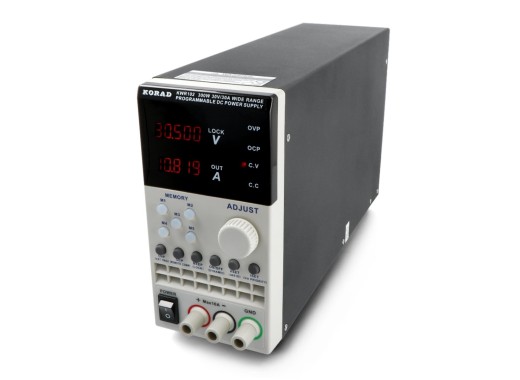

Korad KWR102 power supply
Details
The Korad KWR102 power supply is a programmable DC power supply with a large voltage range of 0-30V and a large current range of 0-30A.
The power supply has a maximum output power of 300W.
Furthermore, this device features a very small resolution of 1mV/1mA, which ensures accurate operation.
Moreover, the device has 5 memory slots for storage and recall of output settings.
Other functions of the power supply are an OVP and OCP function, an external trigger function, a remote compensation function and a voltage and current slope setting function.
Finally, the KWR102 offers various control interfaces, namely: LAN, USB, RS232 and USB.
Model overview
| Models | KWR102 | KWR103 |
|---|---|---|
| Voltage range | 0 - 30 V | 0 - 60 V |
| Current range | 0 - 30 A | 0 - 15 A |
| Price |
Specifications
| Total power | 300 W |
| Outputs | 1 |
| Resolution | 1 mV / 1 mA |
| Ripple | Voltage: ≤ 1 mV RMS + 0.03% of current output Current: ≤ 3 mA RMS |
| Protection | OCP, OVP |
| Interfaces | LAN, USB, RS232 |
| Dimensions | 91.5 x 175 x 305 mm |
| Weight | 3.9 kg |
Accessories
The KWR102 comes with:
- Power cord
- USB cable
- Windows software (KWR102 software (194 MB))
Pros and cons
- Programmable
- 5 memory slots
- Separate switch to turn output on/off
Downloads
| Korad KWR series user manual |  (10.04 MB) | Download |
