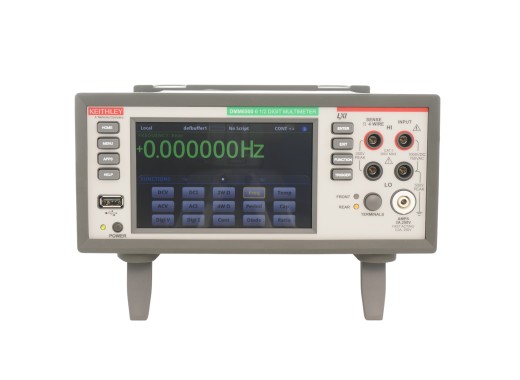

Keithley DMM6500 6.5 digit multimeter

1390 €1,390.00 Excl. VAT
This product is retired
  •
Product number: ELE003268

Be the first to review this product

Lowest price guaranteed

Details

The Keithley DMM6500 is a highly accurate bench multimeter with a fairly large 5-inch 6-1/2 digits (2 000 000- counts) touschscreen display. With this multimeter it is possible to measure DC/AC voltage, DC/AC current, resistance, capacitance, temperature and frequency, in addition to a diode/continuity test, all with very accurate measurement ranges. The 1 MS/sec digitizer allows detection and analysis of voltage or current transients.

The multimeter offers connectivity via USB or Ethernet. These connections can be used to connect to a computer for data logging. In addition, the multimeter has a memory function for local storage of up to 7 million measured values.

Specifications

Range and accuracy
Specification Range Best achievable accuracy
Max. DC voltage 1000 V ±(0,0010% + 0,0004)
Max. AC voltage 750 V ±(0,04% + 0,02)
Max. DC current 10A ±(0,007% + 0,002)
Max. AC Current 10A ±(0,10% + 0,04)
Max. Resistance 100 MΩ ±(0,0020% + 0,0006)
Max. Capacitance 100 μF ±(0,40% + 0,10)
Frequency 3 Hz - 300 kHz ±(0,008%)
Temperature -200 °C - 1820 °C ±(0.20 °C)
Other functions.Diode, continuity, statistics, graphs, digitizing voltage and current, DC voltage ratio, resistance measurement of 2 and 4 wires
True-RMS
Yes
Datalogging
Yes
Display 6-1/2 digits (2000000 counts), 5.0" touchscreen display
ConnectivityUSB, ethernet
Dimensions224 x 107 x 387 mm
Weight 2.72 kg

Accessories

The Keithley DMM6500 6.5 digit multimeter comes with the following accessories:

  • Measurement leads
  • USB interface cable
  • Power cord
  • Calibration certificate

Pros and cons

  • Touchscreen
  • Extended measurement range
