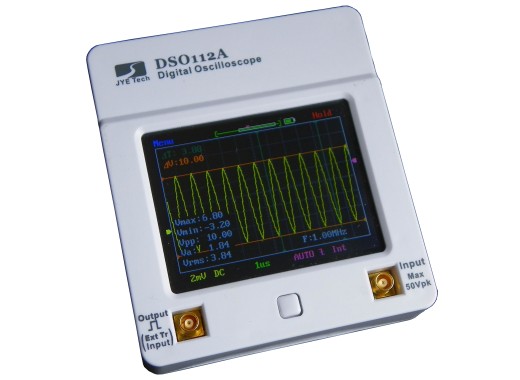

JYE DSO112A handheld oscilloscope
Details
This handy little handheld oscilloscope has 1 channel and an adjustable function generator, and an extremely low price. For only } you have a 2 MHz scope with an internal battery and a micro-USB connector for charging. The oscilloscope has a 2.4" touchscreen and has an 8-bit vertical resolution. Furthermore, the scope offers a frequency adjustable square wave output. This device also has a CE certification.
The possibilities of the device are quite extensive. For example, measurement settings can be saved, it is possible to store waveforms, and it can be connected to a computer via USB.
The device is shipped with a switch which disconnects the battery in the 'OFF' position. Before use of this product, the switch has to be put to 'ON'.
Specifications
| Channels | 1 |
| Bandwidth | 2 MHz |
| Sample rate | 5 MSa/s |
| Vertical resolution | 8 bits |
| Memory | 1024 points |
| Sensitivity | 2 mV/div - 20 V/div |
| Maximum input voltage | 50 Vpp |
| Screen | 2.4" color TFT LCD (320x240) |
| Power supply | Internal battery, 1200 mAh |
| Weight | 80 g (without cables or power supply) |
| Dimensions | 80 mm x 70 mm x 18 mm |
Accessories
- Short MCX to crocodile cable
- Short MCX to BNC cable
- 20 MHz BNC probe
- Micro USB cable
There are copies of this product in circulation, but the version we sell is the original. You can check this with the information in the PDF below.
Downloads
| JYE originaliteit |  (602.46 KB) | Download |
| Quick guide 112A | (2.04 MB) | Download |
| DSO112A Manual | (1.02 MB) | Download |
