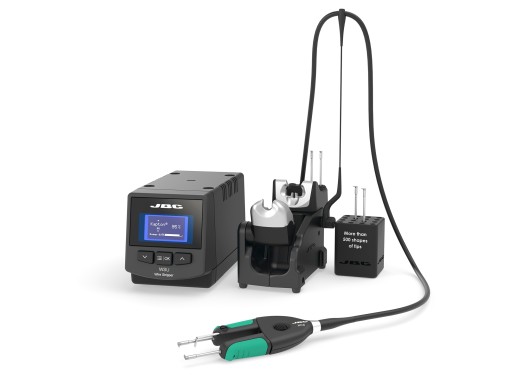

JBC WSS-2B precision wire stripper station
Details
The JBC WSS-2B is a high-temperature precision wire stripper station that includes the WS140 tweezers. It can be used to quickly and precisely strip thermalstable insulated wires without damaging them. Because of the working temperature of 800℃ it is possible to strip wires with materials such as teflon, kapton, silicone rubber and more. Additionally, there are several types of blade cartridges available that make it possible to strip from 40 to 14 AWG wire. The station has a number of built-in power levels for each type of material. In addition, you can also create your own custom set mode.
The WSB-2B is a similar stripper station but offers lower precision, only reaching 34 AWG.
Attention! Does not include blade cartridges, these can be ordered separately via the blue button under the specification table.
Specifications
| Power | 75W |
| Power output max. | 40W per cartridge |
| Temperature max. | 800℃ |
| AWG range | 40 - 14 AWG (depends on blade cartridges used) |
| Interface | USB-B |
| ESD Safe | Yes |
| Control unit dimensions | 180 x 94 x 106 mm |
| Weight | 4.63 kg |
Accessories
The WSS-2B comes with:
- WSU control unit
- WS140 precision thermal wire stripper tweezer (cartridges excluded)
- WSST tweezer stand
- Screwdriver
- Power cord
- Metal brush
- Stand cable
- Cartridge holder
- Cartridge extractor pliers
Pros and cons
- Automatically applies the right settings based on the selected material
- Offers high precision
- Excessive functionality for normal cables
Downloads
| WS140 high-temperature tweezers manual |
 (2.39 MB) |
Download |
| WSU Control Unit Manual |
(3.87 MB) |
Download |
| WSST user manual |
(3.39 MB) |
Download |
