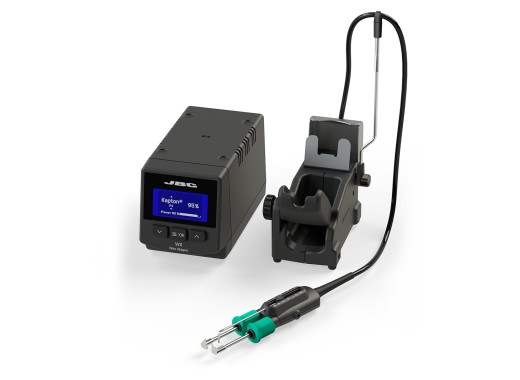

JBC WSB-2A high-temperature wire stripper
Details
Note: this is an updated version of the older WS-2A model
The WSB-2A High-temperature wire stripper is a very handy tool that can be used to quickly and carefully strip wires without damaging them.
Because of the working temperature of 800℃ it is possible to strip wires with materials such as teflon, kapton, silicone rubber and more.
In addition, there are several types of blades available that make it possible to strip from 36 to 18 AWG wire.
The station has a number of built-in power levels for each type of material. In addition, you can also create your own custom
set mode.
Attention! The station comes without knife cartridges. These can be ordered separately via the blue button under the specification table.
Specifications
| Power | 75 W |
| Temperature max. | 800℃ |
| Temperature stability | ±1.5℃ |
| AWG range | 36 - 18 AWG (depends on knives used) |
| Interfaces | USB-B |
| Dimensions | 94 x 106 x 180 mm |
| Weight | 3.8 kg |
Accessories
The WSB-2A unit comes with:
- Stand
- High-temperature wire stripper tweezers (cartridges not included)
- Cartridge holder
- Stand cable
- Power cord
- Cartridges extractor pliers
- Metal brush
- Screwdriver
Pros and cons
- Easily stripping wires without damaging them
- Not needed for normal cables
Downloads
| JBC WSB-2A instruction manual |  (3.46 MB) | Download |
