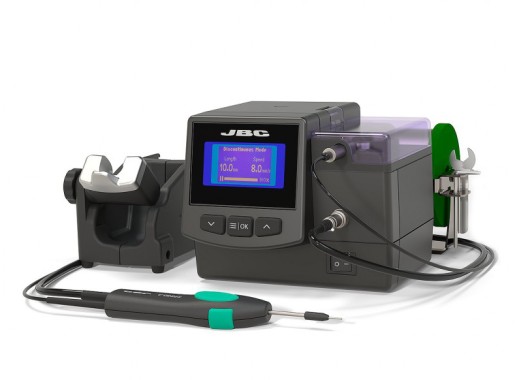

JBC SF-210VB automatic solder feeder
Details
The JBC SF-210VB automatic solder feeder is a high quality solder feeder that will automatically feed solder wire from any position. The solder feeder has three working modes. These modes are as followed: continuous, discontinuous, and program mode. In all of these programs it is possible to configure up to three different wire lengths and speeds. The SF-210VB works with solder wire perforation. This means that it has a small blade which perforates the solder wire down to the flux core while feeding it. This feature is excellent as it allows better flux flow as well as outgassing. It also makes sure that solder and flux will not splash while soldering. The automatic solder feeder will be delivered including the GSF10V guide set. This set is compatible with a solder wire of ⌀ 1 mm.
The default 2-year warranty can be extended to 3 years by registering your device.
Specifications
| Spool capacity | Up to 1kg |
| Solder wire diameter(from the guide set included) | 1 mm |
| Solder diameter | ⌀ 0.5 - ⌀ 1.5 mm |
| Speed | 120 mm/s (max) |
| Maximum wire length | 250mm |
| Communication connectors | USB-B Peripherals RJ12 for RS-232 connection |
| ESD safe | Yes |
| Dimensions | 150 x 120 x 115 mm |
| Weight | 1.9 kg |
Accessories
The JBC SF-210VB automatic solder feeder will be delivered including:
- Control unit (SF)
- Solder feed handle (SF280-A)
- Guide set (GSF10V)
Pros and cons
- 3 working modes
- Guide set included
- High quality
Downloads
| JBC SF-210VB manual |  (1.83 MB) | Download |
