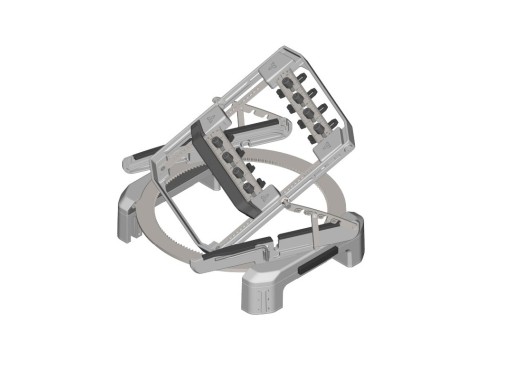

JBC PSS-A multiaxis rotative PCB support
Details
The JBC PSS-A is designed to support and fix PCBs to perform soldering and desoldering jobs with or without preheaters. Any PCB size up to 13 x 13 cm can be clamped by the support. However, what makes it unique in comparison to other PCB supports is its ability to rotate and angle the PCB up at either 25º, 35º, 45º or 55º. It can even turn the PCB completely upside-down, for easy access to the back.
The standard height of the product makes it compatible with the JBC PHSE-2KB IR preheater. Of course the angle of the support has to be at 0° for the preheater to properly function in conjunction with the PSS-A. If needed, the height of the legs can also be increased by a further 10mm or 22.5mm, to accommodate other different sized preheaters.
Take note that this product does not include a preheater.
Specifications
| Max. PCB size | 13 x 13 cm |
| Weight | 2.464 Kg |
| Dimensions | 235 x 245 x 80 mm |
| ESD safe | Yes |
Accessories
The JBC PSS-A comes by default with:
- Allen key
Pros and cons
- Compatible with JBC PHSE preheater
- PCB angle fixed at 4 positions
Downloads
| JBC PSS-A manual |  (4.37 MB) | Download |
