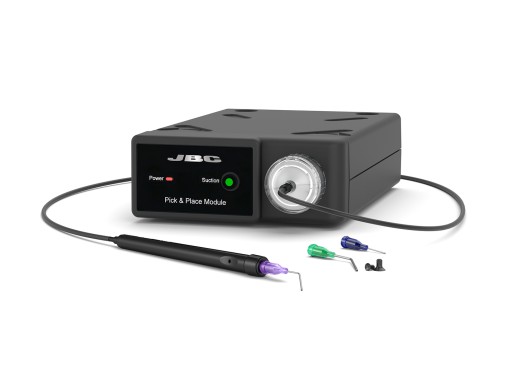

JBC PK-5A pick & place
Details
JBC PK-5A pick & place allows easy placement or removal of SMD components. Different types and sizes of needles and cups are included which allows the vacuum unit to handle different types and sizes of SMD components. It can be switched between 2 drive modes. Manual mode which is used with the supplied pedal for more precise work and continuous mode where the suction is controlled at the pen. So you can either use your foot to control the vacuum unit or with your hand. However, the pedal works only in a start/stop function and it is therefore not possible to control the suction steplessly.
Specifications
| Vacuum pressure | 55% / 0.056 MPa |
| Dimensions | 145 x 55 x 225 mm |
| Weight | 1,7 kg |
| ESD-safe | Yes |
Accessories
The JBC PK-5A includes:
- T260-A Handle
- P-405 Pedal
- NS260 Straight needles
- NB260 Bent needles
- CU260 Suction cups
- Paper filters
- Power cord
Pros and cons
- 2 modes for use in different applications
- Includes different cups and needles applicable for a variety of different components
- ESD-safe
- Pedal function is not stepless
Downloads
| JBC PK-5A Manual |  (2.31 MB) | Download |
