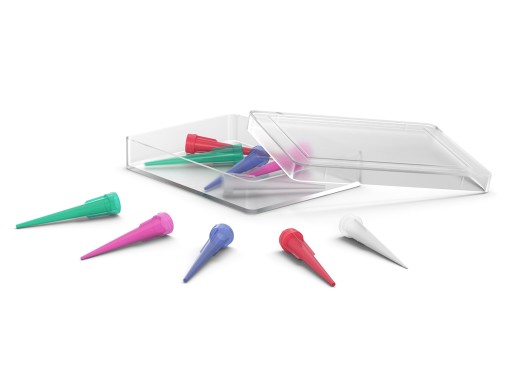

The JBC ND-KP is a set consisting of several solder paste dispenser tapered tips with different gauges. The gauge range is from gauge 18 to gauge 27 and the tips are recommended for solder paste types 2, 3, 4 and 5. The set contains 5 different gauges indicated by various colors, with 2 of each gauge. Each gauge has a recommended solder paste type, which can be found in the table below. The tips have a length of 32 mm.
Included tips
| Size |
Color |
Solder paste |
| 18G |
Green |
Type 2 |
| 20G |
Pink |
Type 3 |
| 22G |
Blue |
Type 3 |
| 25G |
Red |
Type 4 |
| 27G |
Transparent |
Type 5 |
Downloads
(1.01 MB)
