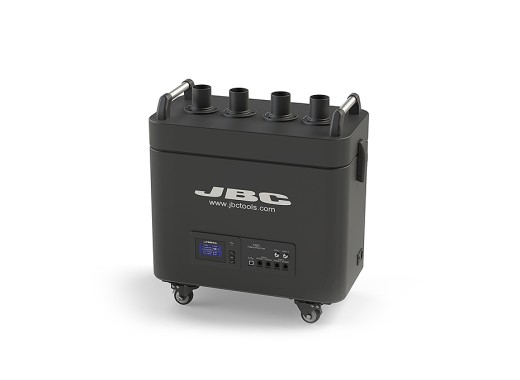

JBC FAE2-5B fume extractor

The JBC FAE2-5B is a high quality, highly efficient fume extractor. This extractor uses smart technology so it only switches on when needed. In this manner, the device is able to save power and lengthen the lifetime of the device and filter. The FAE2 features a direct connection with up to 4 soldering or rework stations. The system is able to be controlled via different protocols; JBC Stations, a Pedal, a ROBOT system and a PC. JBC also includes an integrated system to extract fumes via the soldering stand, even when the system is in rest. This particular function requires the FAE040 and the FAE050/FAE060.

The device has 3 pre-defined modes for fume extraction, namely low, medium and high. There is also the function to adjust the airflow according to personal preferences (between 10%-100%).

Options

We at Eleshop recommend that you use the following accessories for a basic setup:

FAE010 flexible hose	Flexible hose for connecting your JBC FAE fume extractor with the FAE070 flexible arm	FAE010 flexible hose 77.21 €77.21 Excl. VAT Info Add to Cart
FAE070 flexible arm	Flexible arm that can be mounted on your workbench to easily suck up all solder fumes. The FAE070 must be connected to the FAE010 to be connected to the FAE fume extractor.	FAE070 flexible arm 193.53 €193.53 Excl. VAT Info Add to Cart

Be careful! These accessories are not included! You must order them separately by adding them to your shopping cart. If you are interested in more accessories for the JBC FAE fume extractor, please contact us.

Specifications

Inlets	4
Power	400 W
Static pressure	6100 Pa
Airflow	290 m³/h
Noise level	≤54 dB
Filter	Fine dust- (M5), activated carbon- and HEPA filter (H13)
Filter efficiency	99.95% of particles >0.3μm
Connectivity	USB-B, RS-232, RJ12, RJ45(AUX) Pedal
ESD Safe	Yes
Dimensions	560 mm x 320 mm x 590 mm
Weight	33.6 kg

Accessories

The JBC FAE2-5B comes with:

• Power cord
• H13 filter with M5 pre-filter
• User manual
• USB A/B cable
• RJ12-USB A adapter
• RJ12 direct cable
