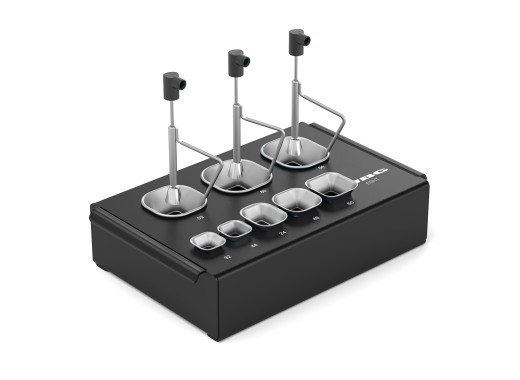

JBC ESHT extractor desk for hot-air soldering stations

The JBC ESHT extractor desk is useful for placing and selecting extractors, protectors and tripods used by JBC hot-air soldering stations that don't already include an extractor desk, like the TESE-2QB, JTSE-2QB, or the PK-5A pick & place tool.

This product also includes a complete set of accessories, needed for reworking a PCB and its components. When a component needs to be removed from a PCB, this can be done automatically with the included tripod extractors. These extractors have a suction cup that attaches itself to the component in question. After the soldering tin is melted the component is automatically lifted by the extractor.

The accessory set also contains separate protector trays that can be placed around the component to be machined so to protect the rest of the PCB or other components from hot air.

These protectors, extractors and tripods can easily and conveniently be placed in this extractor desk at the pre-fitted and labeled locations.

Specifications

Accessories

The JBC ESHT extraction stand for the hot air soldering station is supplied as standard:

• Extractor desk
• Accessory set:
  • Extractors:
    • E2184 (24 x 24 mm)
    • E2064 (20 x 26 mm)
    • E2052 (20 x 20 mm)
  • Protectors:
    • P2220 (10 x 10 mm)
    • P2230 (15 x 15 mm)
    • P2235 (12 x 17 mm)
    • P4000 (12,5 x 12,5 mm)
    • P4010 (17 x 17 mm)
  • Tripods (T2050, T2250)
  • Suction tube for extractors and tripods (0932330)
  • Suction cups (3x 0934050, 3x 0934070)
