JBC D530 series desoldering nozzles

24.73 €24.73 Excl. VAT

24.73 €24.73 Excl. VAT
  •


Be the first to review this product

Lowest price guaranteed

Details

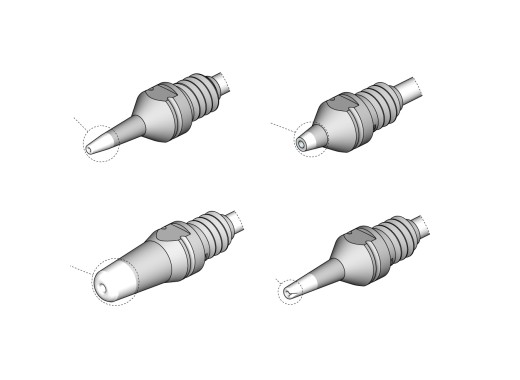

The series of JBC D530 nozzles are specifically used when desoldering with the DT530-A angled desoldering iron.

The type of nozzle you want to buy can be selected in the top right corner. The different models are described below.

Through-hole desoldering

ModelDiameter holeDiameter nozzleMax. pin diameterPrice
D530001 0.6 mm1.4 mm0.4 mm 24.73 €24.73 Excl. VAT
D530002 0.8 mm1.8 mm0.6 mm 24.73 €24.73 Excl. VAT
D530014 0.8 mm2.5 mm0.6 mm 25.68 €25.68 Excl. VAT
D530003 1.0 mm2.7 mm0.8 mm 25.68 €25.68 Excl. VAT
D530017 1.1 mm2.0 mm1.0 mm 25.68 €25.68 Excl. VAT
D530004 1.3 mm3.2 mm1.1 mm 25.68 €25.68 Excl. VAT
D530009 1.3 mm5.0 mm1.1 mm 25.68 €25.68 Excl. VAT
D530005 1.5 mm3.4 mm1.3 mm 25.68 €25.68 Excl. VAT
D530006 1.9 mm4.2 mm1.7 mm 25.68 €25.68 Excl. VAT
D530018 2.2 mm4.6 mm2.0 mm 25.68 €25.68 Excl. VAT
D530007 2.4 mm4.8 mm2.2 mm 25.68 €25.68 Excl. VAT
D530015 3.0 mm5.2 mm2.8 mm 27.58 €27.58 Excl. VAT

Pad cleaning

ModelDiameter holeDiameter nozzlePrice
D530011 0.6 mm1.4 mm 27.58 €27.58 Excl. VAT
D530012 0.8 mm1.8 mm 25.68 €25.68 Excl. VAT
D360013 1.0 mm2.7 mm 25.68 €25.68 Excl. VAT
