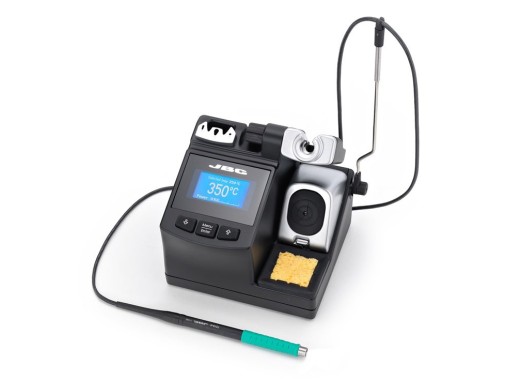

JBC CD-2SQE precision soldering station, 40 Watt

The JBC CD-2SQE lead-free digital soldering station distinguishes itself thanks to the T210-A precision purpose handle and two small tips that it is supplied with, which are ideal for precise soldering. The soldering station can be set from 90 to 450 °C using the display and it only takes a couple of seconds to reach the desired temperature. Thanks to the built-in menu, you can personalize 20 parameters. In addition, it is also possible to draw graphs, adjust the parameters and update the software via a USB connector and PC software. This makes it easy to customize the CD-2SQE.

The built-in swipe and standby functions enable a prolonged life span of the soldering tip. The soldering iron will warm up very fast when you pick it up. Because of this, the soldering tip lasts up to 5 times longer.

The soldering station comes with an ergonomic hand piece, suited for the soldering of SMD components and other small components. The station comes without any tips. You can find soldering tips that are suitable for this product at the bottom of this page.

The soldering stations of JBC distinguish themselves from other stations due to the use of active tips. The heating element and temperature sensor are both entirely situated in the tip, the temperature can be controlled better and the difference in temperature between the tip and the rest of the soldering iron is very small. In addition, it is possible to replace the tips without the need to let them cool off first because tip exchange assistance is provided in the station.

Specifications

Accessoires

The CD-2SE comes with:

• Soldering iron (T210-A)
• Power cord
• Tip exchange assistance
• Soldering iron stand with sponge and brass wool

For more information about this soldering station please refer to the datasheet.

Downloads

JBC soldering brochure

(2.38 MB)

Download
