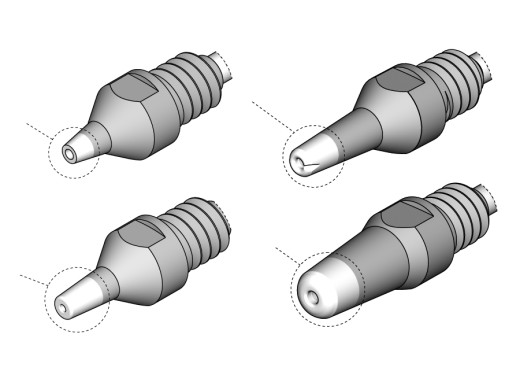

JBC C560 series desoldering nozzles

JBC C560 desoldering tips are suitable for fine work.

Due to their small size, these tips are suitable for SMD, for working under a microscope or for regular components. In addition, the tips can be used for heavy work, because a large power can be delivered to the object to be heated.

These tips are compatible with the JBC DR560-A desoldering iron.

You can select the type of point you want to buy at the top.The different models are described below.

Through-hole desoldering

Model	Diameter hole	Diameter nozzle	Max. pin diameter	Price	Stock
C560001	0.6 mm	1.4 mm	0.4 mm	23.78 €23.78 Excl. VAT
C560002	0.8 mm	1.8 mm	0.6 mm	23.78 €23.78 Excl. VAT
C560014	0.8 mm	2.5 mm	0.6 mm	24.73 €24.73 Excl. VAT
C560003	1.0 mm	2.7 mm	0.8 mm	24.73 €24.73 Excl. VAT
C560017	1.1 mm	2.0 mm	1.0 mm	24.73 €24.73 Excl. VAT
C560004	1.3 mm	3.2 mm	1.1 mm	24.73 €24.73 Excl. VAT
C560009	1.3 mm	5.0 mm	1.1 mm	24.73 €24.73 Excl. VAT
C560005	1.5 mm	3.4 mm	1.3 mm	24.73 €24.73 Excl. VAT
C560006	1.9 mm	4.2 mm	1.7 mm	24.73 €24.73 Excl. VAT
C560018	2.2 mm	4.6 mm	2.0 mm	24.73 €24.73 Excl. VAT
C560007	2.4 mm	4.8 mm	2.2 mm	24.73 €24.73 Excl. VAT
C560015	3.0 mm	5.2 mm	2.8 mm	24.73 €24.73 Excl. VAT

Pad cleaning

Model	Diameter hole	Diameter nozzle	Price	Stock
C560011	0.6 mm	1.4 mm	23.78 €23.78 Excl. VAT
C560012	0.8 mm	1.8 mm	23.78 €23.78 Excl. VAT
C560013	1.0 mm	2.7 mm	24.73 €24.73 Excl. VAT

If other formats are required, we can supply them too.

Downloads

JBC soldering brochure	(2.38 MB)	Download
JBC C560 desoldering nozzles	(453.84 KB)	Download
