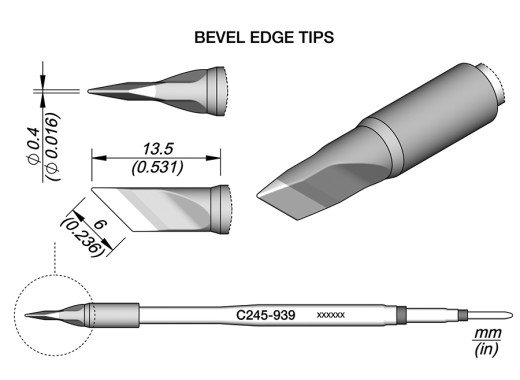

2e kans JBC C245-939

The JBC C245 series soldering tips offers a very wide range of tips, of which a short overview is made below. For more information you can consult the soldering tips guide.

These C245 soldering tips are suitable for the JBC BT-2BQA soldering station, 140Watt and the JBC CD-2BQF soldering station, 130 Watt with a T245 soldering iron.

Depending on your purpose, the right tip can simplify the soldering process. For SMD soldering a fine tip is suitable, but to heat larger surfaces a wider tip is necessary. We can supply all tips from the JBC catalogue. If the tip you wish does not appear on this page, please let us know and we will add it for you.

JBC soldering tips have a long life span, and thanks to the JBC heating system they last up to 5 times longer than tips from competing brands.

You can select the type of tip you want to buy in the top right corner. The different models are described below. Some models have a longer marker to make it easier to get to tips that are more difficult to reach. This is indicated in the row of connection pieces with normal length and longer lengths, where normal means that there is no length addition and longer has a 20 mm longer pin.

Quick navigation

Conical

Conical bent

Chisel

Chisel bent

Bevel

Bevel bent

Spoon

Barrel

Round connector

Knife

Blade

Chip

Drag

Dual in line

QFP/PLCC

PLCC socket

Solder pot

Heat stacking

Conformal coating removal

Cutter

Customized

Conical

Model	Diameter tip (mm)	Tip length	Price	Stock
C245030	0.3	Normal	27.51 €27.51 Excl. VAT
C245032	0.4	Normal	27.51 €27.51 Excl. VAT
C245036	0.5	Normal	27.51 €27.51 Excl. VAT
C245930	0.5	Normal	27.58 €27.58 Excl. VAT
C245001	0.6	Normal	27.58 €27.58 Excl. VAT
C245201	0.6	Longer	34.24 €34.24 Excl. VAT
C245937 (HT)	0.7	Normal	27.58 €27.58 Excl. VAT
C245957	0.8	Normal	27.58 €27.58 Excl. VAT
C245903	1.0	Normal	27.51 €27.51 Excl. VAT
C245803	1.0	Longer	34.24 €34.24 Excl. VAT
C245041 (TS)	1.0	Normal	27.58 €27.58 Excl. VAT
C245403 (HT)	1.0	Normal	27.58 €27.58 Excl. VAT
C245943	1.7	Normal	27.58 €27.58 Excl. VAT
C245933	2.2	Normal	27.58 €27.58 Excl. VAT
C245107 (HT)	3.0	Normal	27.58 €27.58 Excl. VAT

▲ Back to top

Conical bent

Model	Dimensions tip (mm)	Tip length	Price	Stock
C245034	0.4 x 8.0	Normal	27.58 €27.58 Excl. VAT
C245234	0.4 x 8.0	Longer	34.24 €34.24 Excl. VAT
C245029	0.4 x 9.5	Normal	27.51 €27.51 Excl. VAT
C245126	0.4 x 16.0	Normal	27.51 €27.51 Excl. VAT
C245786	0.4 x 14.0	Normal	27.58 €27.58 Excl. VAT
C245929	0.6 x 9.5	Normal	27.51 €27.51 Excl. VAT
C245935	0.8 x 13.0	Normal	27.58 €27.58 Excl. VAT
C245904	1.0 x 9.5	Normal	27.58 €27.58 Excl. VAT
C245804	1.0 x 9.5	Longer	34.24 €34.24 Excl. VAT
C245259	1.5 x 11.0	Normal	34.24 €34.24 Excl. VAT
C245260 (HT)	2.0 x 10.0	Normal	34.24 €34.24 Excl. VAT
C245627	3.0 x 11.5	Normal	34.24 €34.24 Excl. VAT
C245628 (HT)	4.0 x 11.5	Normal	34.24 €34.24 Excl. VAT

▲ Back to top

Chisel

Model	Dimensions tip (mm)	Tip length	Price	Stock
C245731	0.6 x 0.3	Normal	27.51 €27.51 Excl. VAT
C245773 (HT)	0.8 x 0.3	Normal	27.51 €27.51 Excl. VAT
C245673 (HT)	0.8 x 0.3	Longer	34.24 €34.24 Excl. VAT
C245159E	0.8 x 0.4	Normal	30.44 €30.44 Excl. VAT
C245742 (HT)	0.8 x 0.6	Normal	27.58 €27.58 Excl. VAT
C245774	1.2 x 0.3	Normal	27.51 €27.51 Excl. VAT
C245158E	1.2 x 0.4	Normal	30.44 €30.44 Excl. VAT
C245906	1.2 x 0.7	Normal	27.51 €27.51 Excl. VAT
C245806	1.2 x 0.7	Longer	34.24 €34.24 Excl. VAT
C245406 (HT)	1.2 x 0.7	Normal	27.58 €27.58 Excl. VAT
C245768	1.5 x 0.3	Normal	27.51 €27.51 Excl. VAT
C245160E	1.6 x 0.5	Normal	30.44 €30.44 Excl. VAT
C245944	1.8 x 0.8	Normal	27.51 €27.51 Excl. VAT
C245844	1.8 x 0.8	Longer	34.24 €34.24 Excl. VAT
C245907	2.2 x 1.0	Normal	27.51 €27.51 Excl. VAT
C245807	2.2 x 1.0	Longer	34.24 €34.24 Excl. VAT
C245407 (HT)	2.2 x 1.0	Normal	27.51 €27.51 Excl. VAT
C245770 (HT)	2.4 x 0.3	Normal	27.58 €27.58 Excl. VAT
C245759 (HT)	2.4 x 0.5	Normal	27.51 €27.51 Excl. VAT
C245741 (HT)	2.4 x 0.6	Normal	27.51 €27.51 Excl. VAT
C245155E	2.4 x 0.8	Normal	30.44 €30.44 Excl. VAT
C245729	2.7 x 1.0	Normal	27.58 €27.58 Excl. VAT
C245061	3.0 x 1.0	Normal	27.51 €27.51 Excl. VAT
C245261	3.0 x 1.0	Longer	34.24 €34.24 Excl. VAT
C245161E	3.2 x 0.8	Normal	30.44 €30.44 Excl. VAT
C245911 (HT)	3.2 x 1.2	Normal	27.51 €27.51 Excl. VAT
C245811 (HT)	3.2 x 1.2	Longer	34.24 €34.24 Excl. VAT
C245775	3.2 x 1.2	Longer	27.58 €27.58 Excl. VAT
C245755 (HT)	4.0 x 0.8	Normal	27.51 €27.51 Excl. VAT
C245756 (HT)	4.8 x 1.0	Normal	27.58 €27.58 Excl. VAT
C245908 (HT)	4.8 x 1.5	Normal	27.51 €27.51 Excl. VAT
C245808 (HT)	4.8 x 1.5	Longer	34.24 €34.24 Excl. VAT
C245708 (HT)	4.8 x 1.5	Longer	27.58 €27.58 Excl. VAT
C245069 (E/Robot)	5.0 x 1.7	Normal	27.58 €27.58 Excl. VAT
C245966 (HT)	6.6 x 1.8	Normal	27.51 €27.51 Excl. VAT
C245866 (HT)	6.6 x 1.8	Longer	34.24 €34.24 Excl. VAT

▲ Back to top

Chisel bent

Model	Dimensions tip (mm)	Tip length	Price	Stock
C245962	1.2 x 0.7	Normal	27.58 €27.58 Excl. VAT
C245862	1.2 x 0.7	Longer	34.24 €34.24 Excl. VAT
C245963	1.8 x 0.8	Normal	27.58 €27.58 Excl. VAT
C245863	1.8 x 0.8	Longer	34.24 €34.24 Excl. VAT
C245946	2.2 x 1.0	Normal	27.58 €27.58 Excl. VAT
C245846	2.2 x 1.0	Longer	34.24 €34.24 Excl. VAT
C245732	3.2 x 1.5	Normal	27.58 €27.58 Excl. VAT
C245761 (twisted)	3.0 x 1.0	Normal	29.45 €29.45 Excl. VAT

▲ Back to top

Bevel

Model	Diameter tip (mm)	Tip length	Price	Stock
C245747	0.6	Normal	27.58 €27.58 Excl. VAT
C245710	1.2	Normal	27.51 €27.51 Excl. VAT
C245064 (RTS)	1.3	Normal	27.58 €27.58 Excl. VAT
C245905	1.5	Normal	27.58 €27.58 Excl. VAT
C245405 (HT)	1.5	Normal	27.58 €27.58 Excl. VAT
C245102 (RTS)	2.0	Normal	27.58 €27.58 Excl. VAT
C245945	2.2	Normal	27.51 €27.51 Excl. VAT
C245845	2.2	Longer	34.24 €34.24 Excl. VAT
C245156E	2.4	Normal	30.44 €30.44 Excl. VAT
C245795	2.5	Longer	39.63 €39.63 Excl. VAT
C245784 (RTS)	2.8	Normal	27.58 €27.58 Excl. VAT
C245793 (RTS)	2.8	Normal	27.58 €27.58 Excl. VAT
C245912	3.0	Normal	27.58 €27.58 Excl. VAT
C245812	3.0	Longer	34.24 €34.24 Excl. VAT
C245056 (HT)	3.5	Normal	27.51 €27.51 Excl. VAT
C245256 (HT)	3.5	Longer	34.24 €34.24 Excl. VAT
C245354E	3.5	Longer	30.44 €30.44 Excl. VAT
C245797 (RTS)	3.8	Normal	28.03 €28.03 Excl. VAT
C245951 (HT)	3.8	Normal	27.58 €27.58 Excl. VAT
C245766	5.0	Normal	27.58 €27.58 Excl. VAT
C245301	8.8	Normal	51.36 €51.36 Excl. VAT

▲ Back to top

Bevel bent

Model	Diameter tip (mm)	Tip length	Price	Stock
C245748	0.6	Normal	39 €39.00 Excl. VAT
C245749 (twisted)	0.6	Normal	39 €39.00 Excl. VAT

▲ Back to top

Spoon

Model	Diameter tip (mm)	Tip length	Price	Stock
C245965	1.9	Normal	38.05 €38.05 Excl. VAT
C245067 (mini)	2.3	Normal	38.05 €38.05 Excl. VAT
C245931	2.7	Normal	37.95 €37.95 Excl. VAT
C245938 (mini)	3.8	Normal	37.95 €37.95 Excl. VAT

▲ Back to top

Barrel

Model	Diameter tip (mm)	Tip length	Price	Stock
C245790	0.8	Normal	34.15 €34.15 Excl. VAT
C245785	1.5	Normal	34.24 €34.24 Excl. VAT
C245763	2.5	Normal	34.24 €34.24 Excl. VAT
C245760	3.5	Normal	34.15 €34.15 Excl. VAT

▲ Back to top

Round connector

Model	Dimensions tip (mm)	Tip length	Price	Stock
C245122	1.5 x 0.5	Normal	39.9 €39.90 Excl. VAT
C245762	6.7 x 1.8	Normal	37.05 €37.05 Excl. VAT

▲ Back to top

Knife

Model	Dimensions tip (mm)	Tip length	Price	Stock
C245789	3.5 x 0.3	Normal	34.24 €34.24 Excl. VAT
C245765	6.0 x 0.4	Normal	34.24 €34.24 Excl. VAT
C245955	13 x 0.5	Normal	45.66 €45.66 Excl. VAT

▲ Back to top

Blade

Model	Dimensions tip (mm)	Tip length	Price	Stock
C245914	10.0 x 2.4	Normal	48.51 €48.51 Excl. VAT
C245913	21.0 x 2.4	Normal	48.51 €48.51 Excl. VAT
C245949	32.0 x 2.4	Normal	57.07 €57.07 Excl. VAT

▲ Back to top

Chip

Model	Diameter tip (mm)	Tip length	Price	Stock
C245016	2.0 - 4.7	Normal	38.05 €38.05 Excl. VAT
C245150	2.3 - 5.5	Normal	38.05 €38.05 Excl. VAT
C245018	3.5 - 6.2	Normal	38.05 €38.05 Excl. VAT

▲ Back to top

Drag

Model	Diameter tip (mm)	Tip length	Price	Stock
C245754	3.0 x 2.0	Normal	38.05 €38.05 Excl. VAT
C245751	3.0 x 3.25	Normal	38.05 €38.05 Excl. VAT
C245669	3.25 x 1.25	Normal	38.05 €38.05 Excl. VAT

▲ Back to top

Dual in line

Model	Diameter tip (mm)	Tip length	Price	Stock
C245220	5.4 - 6.0	Normal	59.92 €59.92 Excl. VAT
C245250	5.4 - 8.0	Normal	59.92 €59.92 Excl. VAT
C245221	5.5 - 7.0	Normal	59.92 €59.92 Excl. VAT
C245304	9.6 x 15.0	Normal	59.92 €59.92 Excl. VAT

▲ Back to top

Solder pot

Model	Afmeting tip (mm)	Tip length	Price	Stock
C245SP01	15.0 x 18.0	Normal	119.37 €119.37 Excl. VAT

▲ Back to top

Heat stacking

Model	Dimensions tip (mm)	Tip length	Price	Stock
C245053	3.8 x 3.5	Normal	37.05 €37.05 Excl. VAT
C245052	4.9 x 4.5	Normal	38.05 €38.05 Excl. VAT
C245054	6.5 x 4.5	Normal	38.05 €38.05 Excl. VAT

▲ Back to top

Cutter

Model	Cut length (mm)	Tip length	Price	Stock
C245138	4.5 x 1.8	Normal	51.36 €51.36 Excl. VAT

▲ Back to top

Customized

Model	Diameter tip (mm)	Tip length	Price	Stock
C245009	12	Normal	38.05 €38.05 Excl. VAT

▲ Back to top

A tip marked HT is one with high thermal capacity, it heats up more slowly but can also transfer more energy to the solder surface.

A tip marked TS is one with an extra tinned surface.

A tip marked RTS is one with a reduced tinned surface, ideal for touching up.

A tip with name ending on E is one with a thicker iron layer, ideal for though and repetitive works in mass production. The thicker layer reduces thermal efficiency.

We can supply all C245 soldering tips. If you want a tip that is not listed here, you can contact us for this.

Large consumers

If you order 10 pieces or more in én time we give a discount (also on mixed orders). Please contact us for a tailor-made quote.

For more information you can consult the guide below. From page 23 you can find the C245 soldering tips.
